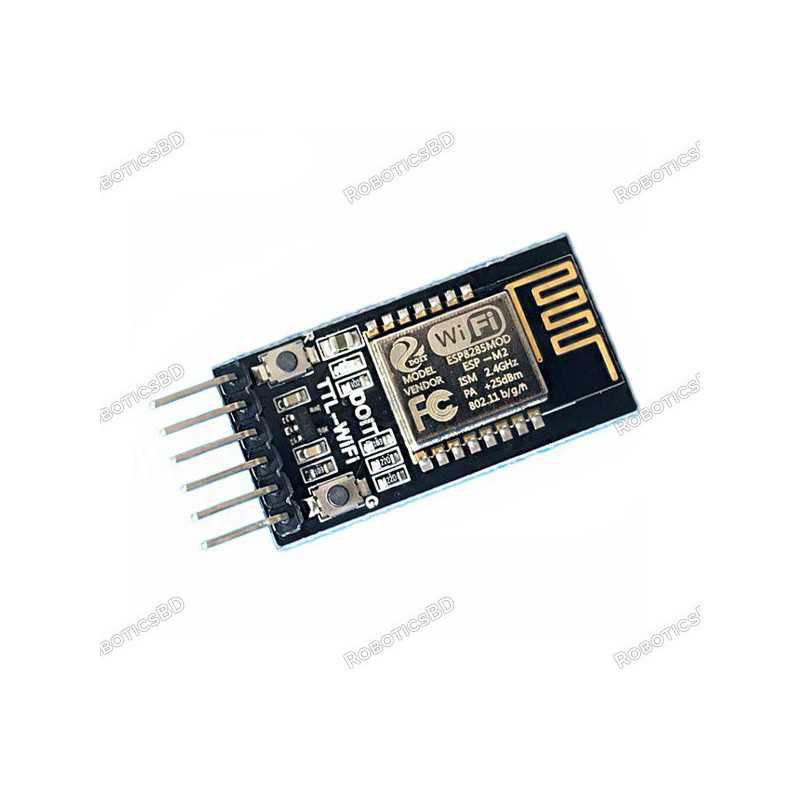

DT-06 Module is based on ESP8285 ESP M2 module and provides easy to use WIFI to any UART Serial port and is pin compatible to HC-06 Bluetooth modules. If a project already uses Bluetooth then you can very easily convert into Wi-Fi without any change in code. RoboticsBD
Using the built-in web interface transparent WIFI-UART communication can be setup for TCP or UDP sockets on any port.
This module requires NO configuration to get started!
This module powers up as a standalone Access Point at DOIT_WIFI_XXXX with an IP address of 192.168.4.1.
Any message sent to 192.168.4.1 on port TCP 9000 will be sent to TX/RX @ 9600bps and vice-versa.
Connect module to Arduino or TX/RX of USB to Serial adapter. RoboticsBD
Connect phone or PC via Wi-Fi to Access Point (SSID will show up as DOIT_WIFI_XXXX or something similar -- no password).
Use a TCP Terminal or your own applications to send and receive messages to and from 192.168.4.1 on port TCP 9000.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Working voltage: | 4.5V~6.0V |
| Provided pins: | STATE, TXD, RXD,EN; |
| OTA firmware update | Yes |
| WiFi module | ESP-M2 |
| Working temperature: | -40℃-125℃ |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 9 × 6 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x DT-06 TTL to WIFI Module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of DT-06 TTL to WIFI Module in Bangladesh is BDT 490 You can buy the DT-06 TTL to WIFI Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
