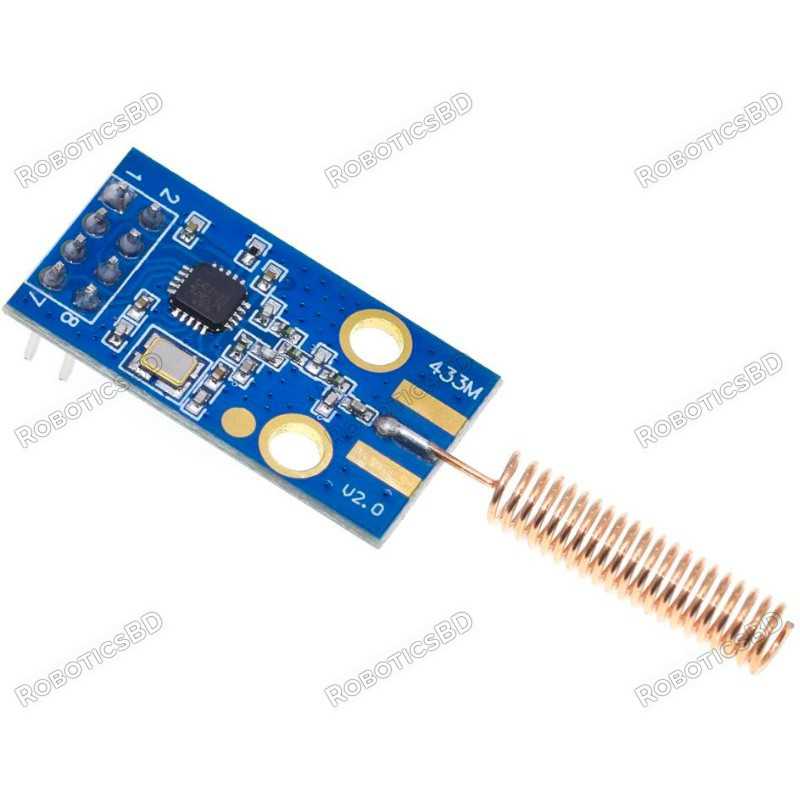

The CC1101 500kbps Wireless Transceiver Module RF 433MHz is a robust and compact module designed for reliable wireless communication. Featuring the highly praised CC1101 chip from Texas Instruments, this module offers exceptional stability, programmability, and low power consumption. With support for FSK, OOK, ASK, and MSK modulations, it delivers transmission rates up to 500kbps and a sight distance of 350m. Ideal for smart homes, IoT devices, and short-range industrial communication, this module is optimized for frequency hopping systems and carrier detection. Compact in size and compatible with SPI interface, it’s an excellent choice for seamless integration into various projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Core Chip | CC1101 |
| Carrier Frequency | 433 MHz |
| Max Data Rate | 500 kbps |
| Modulation | FSK, OOK, ASK, MSK |
| Max Output Power | =+11 dBm |
| Transmission Range | Up to 350m in open sight |
| Supply Voltage Range | 1.9V - 3.6V |
| Current Consumption (Sleep) | 2uA |
| Current Consumption (Receive) | < 15mA |
| Current Consumption (Transmit) | < 25mA |
| Operating Temperature | -20°C to 80°C |
| Interface | SPI |
| Dimensions | Compact DIP module |
| Shipment Weight | 0.003 kg |
| Shipment Dimensions | 5 x 2 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x CC1101 500kbps Wireless Transceiver Module RF 433mhz SPI Interface Spring Antenna
