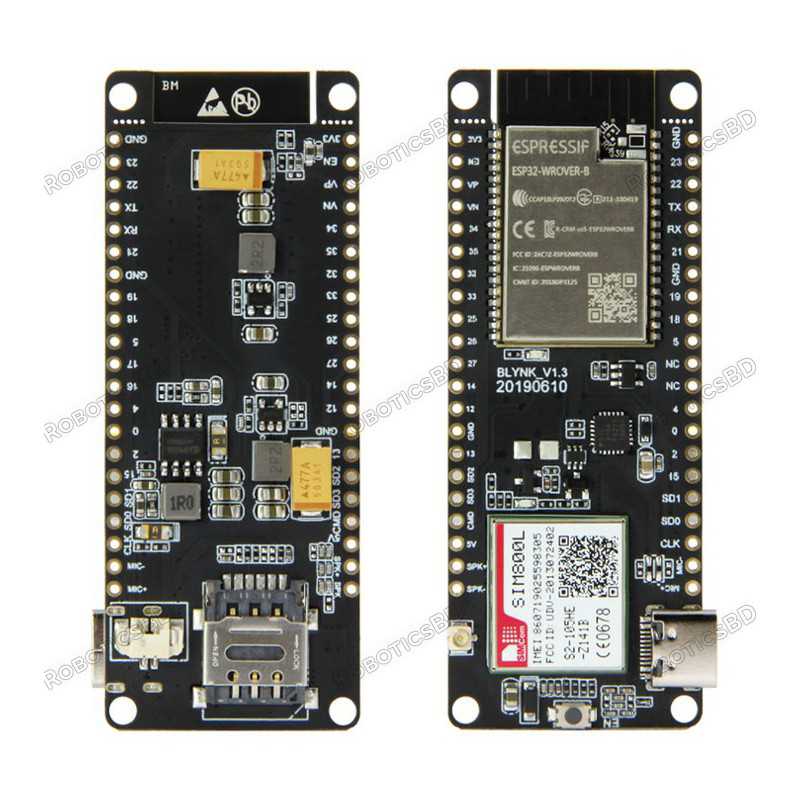

This is a TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered. The module is used for wireless communication. The ESP V1.4 ESP32 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. RoboticsBD
This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Detailed Features | |
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB SRAM |
| Button | Reset |
| USB to TTL | CP2104 |
| Modular interface | UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | About 70mA |
| Sleep current | About 300uA |
| SIM card | Only supports Nano SIM card |
| Working temperature range | -40℃ ~ +85℃ |
| Size Weight | 78.83mm*28.92mm*8.06mm(11.77g) |
| Power Supply Specifications | |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
1 x T-Call V1.3
| General Specification | |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB |
| USB to TTL | CP2104 |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | 70mA |
| SIM card | Only supports Nano SIM card |
| Power Supply | USB 5V/1A |
| USB | Type-C |
| Working Temperature Range (°C) | -40 to 85 |
| Length (mm) | 77 |
| Width (mm) | 29 |
| Height (mm) | 12 |
| Weight (gm) | 17 |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 9 × 5 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of TTGO T-Call AM-036 ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board in Bangladesh is BDT 2,558 You can buy the TTGO T-Call AM-036 ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
