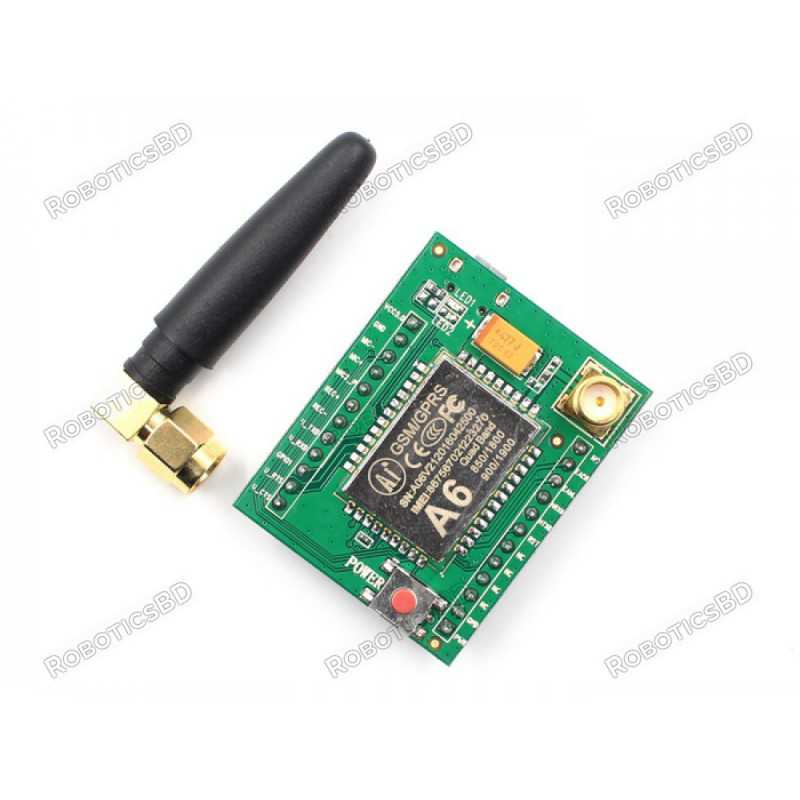

A6 GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, Make or receive phone calls, connecting to internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world. RoboticsBD
Though the module can work on 5V, the operating voltage of the chip is from 3.3V to 4.2V. To keep supply voltage safe at 4.1V, the module comes with a high frequency step-down switching regulator MP1584 from Monolithic Power Systems – capable of handling load currents up to 3A. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
There’s a SIM socket on the back! Any activated, 2G micro SIM card would work perfectly.
VCC supplies power for the module. Connect this to any external power source rated 5V 2A.
GND is the Ground Pin and needs to be connected to GND pin on the Arduino.
MIC± is a differential microphone input. The two microphone pins can be connected directly to these pins.
MIC2_P pin is used to interface 4-pole TRRS MIC
REC± is a differential speaker interface. The two pins of an 8Ω speaker can be tied directly to these two pins.
U_TxD (Transmitter) pin is used for serial communication.
U_RxD (Receiver) pin is used for serial communication. RoboticsBD
GPIO1 is used to control the module to enter low-power mode.
U_RTS (Request to Send) is UART flow control pin allow the receiver and the transmitter to alert each other to their state.
U_CTS (Clear to Send) is UART flow control pin allow the receiver and the transmitter to alert each other to their state.
EAR_R is used to interface 4-pole TRRS Headset
EAR_L is used to interface 4-pole TRRS Headset
HST_RXD HOST UART is a debug UART, which is used for downloading, calibrating, trace and so on. It doesn’t support any AT command. This interface is only used when debugging, RoboticsBD
HST_TXD UART is a debug UART, which is used for downloading, calibrating, trace and so on. It doesn’t support any AT command. This interface is only used when debugging
RST (Reset) is a hard reset pin. If you absolutely got the module in a bad space, pull this pin low for 100ms to perform a hard reset.
NC Not Connected
PWR pin is used for turning module ON/OFF programmatically. For doing this you must pull it HIGH for a moment (less than 500 ms or around). RoboticsBD
Warning: You should be very careful to not to disconnect the GND before the VCC and always connect GND before VCC. Otherwise the module can use the low voltage serial pins as ground and can get destroyed instantly. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Standby Current | 3 mA |
| Input Voltage | 5 V |
| GSM/GPRS Band Frequency | 850~1900 MHZ |
| Working Temperature Range (°C) | -30 to 80 |
| Safe Input Voltage | 4.1 V |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 5 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x A6 GPRS GSM Module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of A6 GPRS GSM Module in Bangladesh is BDT 900 You can buy the A6 GPRS GSM Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
