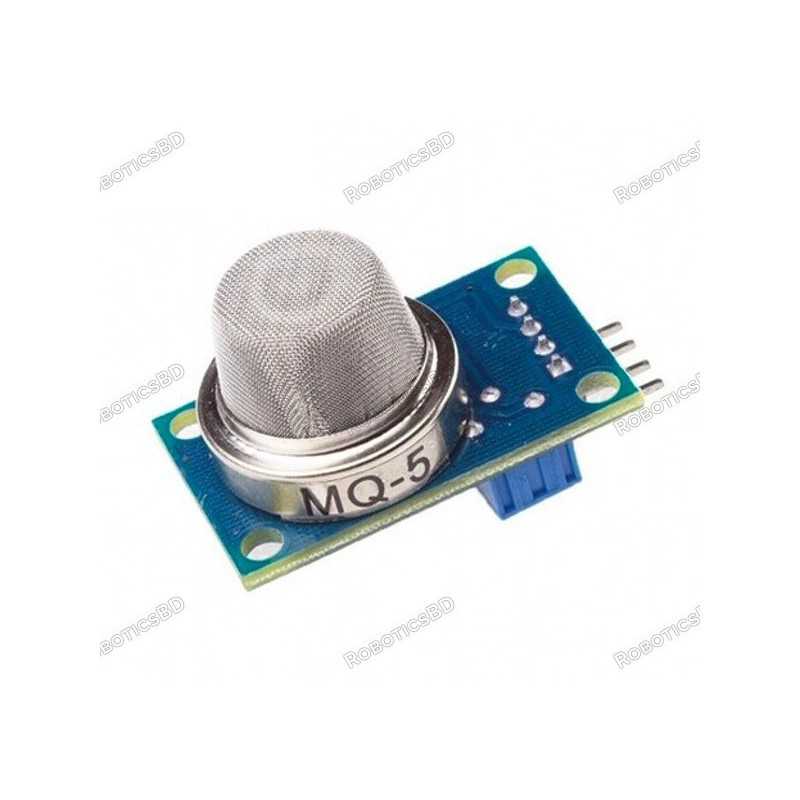

The Simple MQ-5 Methane LPG Liquid Propane Gas sensor Module is a great way to add basic gas sensing to your project at a reasonable price. TheMQ-5 Methane LPG Liquid Propane Gas Sensor Module particulate sensor uses a Buzzer to sense any detected material that is even present in the air!
This MQ-5 Methane LPG Liquid Propane Gas Sensor Module is widely used in gas leakage detecting pieces of equipment in family and industry, are suitable for detecting LPG, natural gas, town gas, avoid the noise of alcohol and cooking fumes and cigarette smoke. RoboticsBD
The MQ5 ( MQ-5 ) is used in gas leakage detecting equipment in consumer and industry applications, this sensor is suitable for detecting LPG, natural gas, coal gas. Avoid the noise of alcohol, cooking fumes, and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
The sensitive material of the MQ-5 gas sensor is tin Oxide (SnO2), which with lower conductivity in clean air. When the target combustible gas exists, The sensor’s conductivity is higher along with the gas concentration rising. Please use a simple electro circuit, Convert the change of conductivity to the corresponding output signal of gas concentration. RoboticsBD
MQ-5 gas sensor has a high sensitivity to Methane, Propane, and Butane, and could be used to detect both Methane and Propane. The sensor could be used to detect different combustible gas especially Methane, it is with low cost and suitable for different application. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Connections
VCC ↔ 2.5V ~ 5.0V
GND ↔ ground
Aout ↔ MCU.IO (analog output)
Dout ↔ MCU.IO (digital output)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | MQ-5 |
| Operating Voltage (VDC) | 1-4 |
| Operating Temperature (°C) | -20 to 40 |
| Length (mm) | 32 |
| Width (mm) | 20 |
| Height (mm) | 22 |
| Weight (gm) | 7 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 5 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x MQ-5 Smoke Gas Detector Sensor.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of MQ-5 Smoke Gas Detector Sensor in Bangladesh is BDT 160 You can buy the MQ-5 Smoke Gas Detector Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
