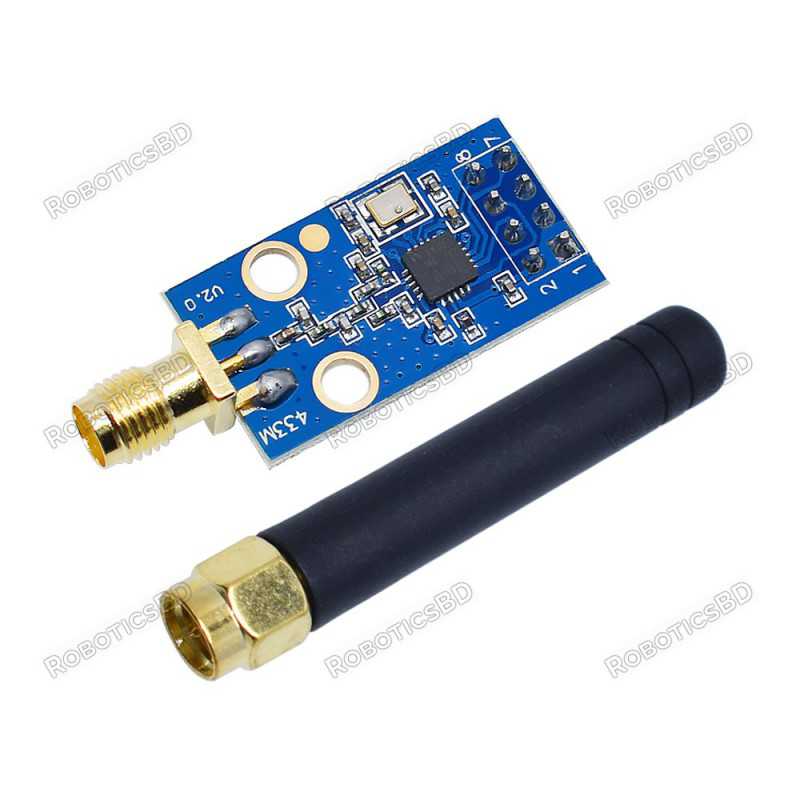

The CC1101 500kbps Wireless Transceiver Module RF 433MHz with SMA antenna is a versatile and compact module designed for robust wireless communication. Built on the highly reliable CC1101 chip from Texas Instruments, this module delivers high sensitivity and low power consumption, making it ideal for IoT, industrial, and short-range wireless communication needs. Supporting multiple modulation types such as FSK, OOK, ASK, and MSK, it offers programmable output power up to +11dBm and a transmission range of up to 350m in open sight. Its SMA antenna interface enhances signal quality, ensuring uninterrupted connectivity for smart home systems, industrial controls, and more. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Core Chip | CC1101 |
| Carrier Frequency | 433 MHz (Supports ISM bands: 315/868/915 MHz) |
| Max Data Rate | 500 kbps |
| Modulation | FSK, OOK, ASK, MSK |
| Max Output Power | =+11 dBm |
| Transmission Range | Up to 350m in open sight |
| Supply Voltage Range | 1.9V - 3.6V |
| Current Consumption (Sleep) | 2uA |
| Current Consumption (Receive) | < 15mA |
| Current Consumption (Transmit) | < 25mA |
| Interface | SPI |
| Antenna Interface | SMA |
| Operating Temperature | -20°C to 80°C |
| Dimensions | Compact DIP module |
| Shipment Weight | 0.0076 kg |
| Shipment Dimensions | 5 x 3 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x CC1101 500kbps Wireless Transceiver Module RF 433mhz SPI Interface SMA Antenna
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of CC1101 500kbps Wireless Transceiver Module RF 433mhz SPI Interface SMA Antenna in Bangladesh is BDT 690 You can buy the CC1101 500kbps Wireless Transceiver Module RF 433mhz SPI Interface SMA Antenna at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
