Using a drone is easy but controlling a drone is a tough job that’s why a transmitter is needed. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver. And Flysky is one of the popular brands that only manufactures a Diverse Range of high-quality Transmitters and Receivers at an affordable price.
FlySky CT6B 2.4 GHz 6CH transmitter is an entry-level 2.4 GHz radio system offering the reliability of 2.4 GHz signal technology and a receiver .it is ideal for quadcopters and multirotor that require the 6ch operation.
FlySky Transmitter and Receiver is gaining so much popularity due to its originality and compatibility in high-end drone projects and Industrial people are interested in this type of Transmitter. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model Type | Digital Radio Transreceiver |
| Modulation Type | GFSK |
| Sensitivity (dBm) | 1024 |
| Code Type | Digital |
| Band-Range (GHz) | 2.40 ~ 2.48 |
| Bandwidth (KHz) | 500 |
| DSC Port | Yes (3.5mm:output:PPM) |
| Charging Port | Yes |
| Default Operating Mode | Mode 2 (Left-Hand Throttle) |
| Color | Black |
| Low Voltage Warning | Yes(at less than 9V) |
| No. of Channels | 6 |
| Operating Voltage (VDC) | 12 |
| RF Power | Less Than 20 dbm |
| Dimensions (mm) LxWxH | 189 x 97 x 295 |
| Weight (gm) | 511 |
| Certificate | CE0678, FCC |
| Shipment Weight | 0.95 kg |
| Shipment Dimensions | 24 × 22 × 9 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

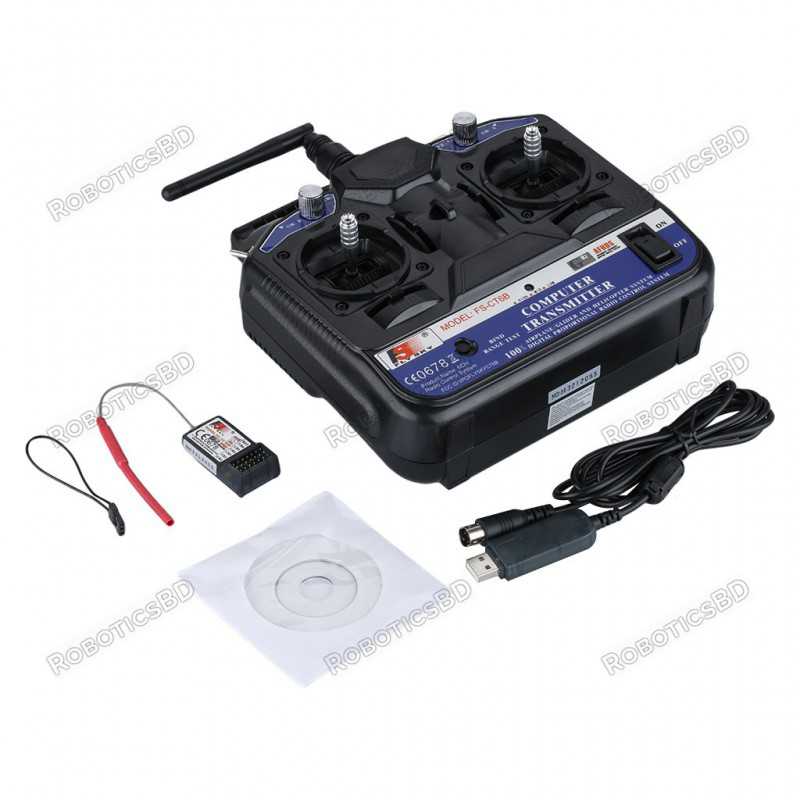

1 x Flysky CT6B Transmitter
1 x FS-R6B Receiver
1x USB Interface Cable
1 x Receiver Binding Cable
1x User Manual.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of FlySky FS-CT6B 2.4GHz 6CH Transmitter With Receiver FS-R6B Mode 2 in Bangladesh is BDT 4,590 You can buy the FlySky FS-CT6B 2.4GHz 6CH Transmitter With Receiver FS-R6B Mode 2 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
