Note: This board is intended for advanced users with soldering experience and customization skills.
Modifications are required to use it with an MCU
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
If you are wandering to make a machine which is used to detect heart rate and pulse rate. then this sensor Module is Compatible with you.
Heart Rate click carries Maxim’s MAX30100 integrated pulse oximetry and a heart-rate sensor. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED color combination is optimized for reading the data through the tip of one’s finger.
The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. The operates at the 3.3V power supply. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| SN | PINS | DEFINITION OF PINS |
| 1 | VIN | Input voltage (1.8V to 5.5V) |
| 2 | SCL | IIC-SCL |
| 3 | SDA | IIC-SDA |
| 4 | INT | MAX30100INT |
| 5 | IRD | MAX30100 IR_DRV |
| 6 | RD | MAX30100 R_DRV |
| 7 | GND | Ground |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Working voltage | 1.8 ~ 5.5V |
| Shutdown Current | 0.7µA |
| Color | Green |
| Length (mm) | 19 |
| Width (mm) | 14.5 |
| Height (mm) | 3 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 8 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

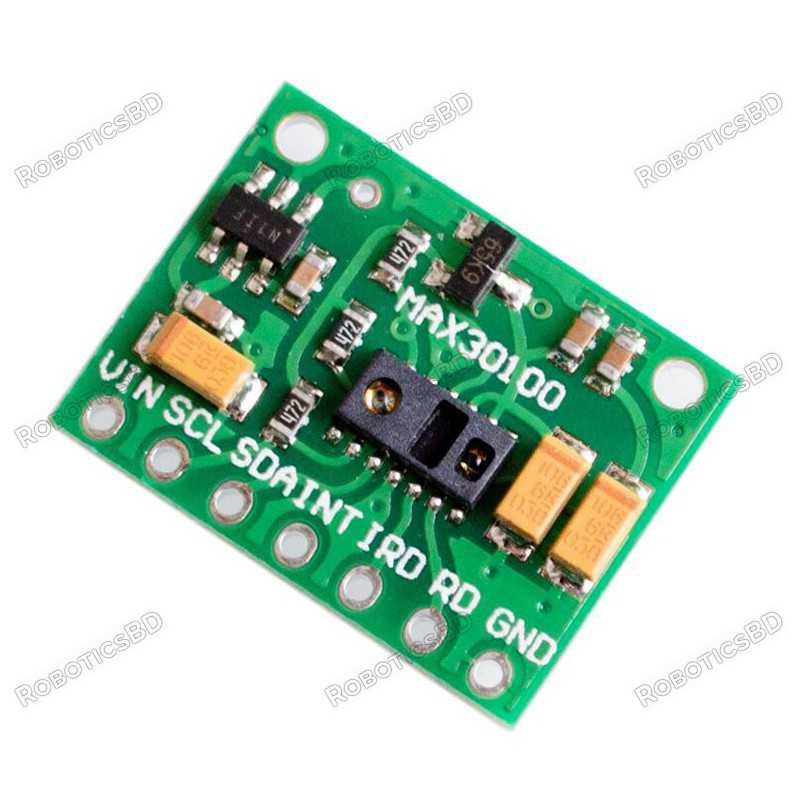

1 x MAX30100 Pulse Oximeter Heart Rate Sensor Module
The latest price of MAX30100 Pulse Oximeter Heart Rate Sensor Module in Bangladesh is BDT 340 You can buy the MAX30100 Pulse Oximeter Heart Rate Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
