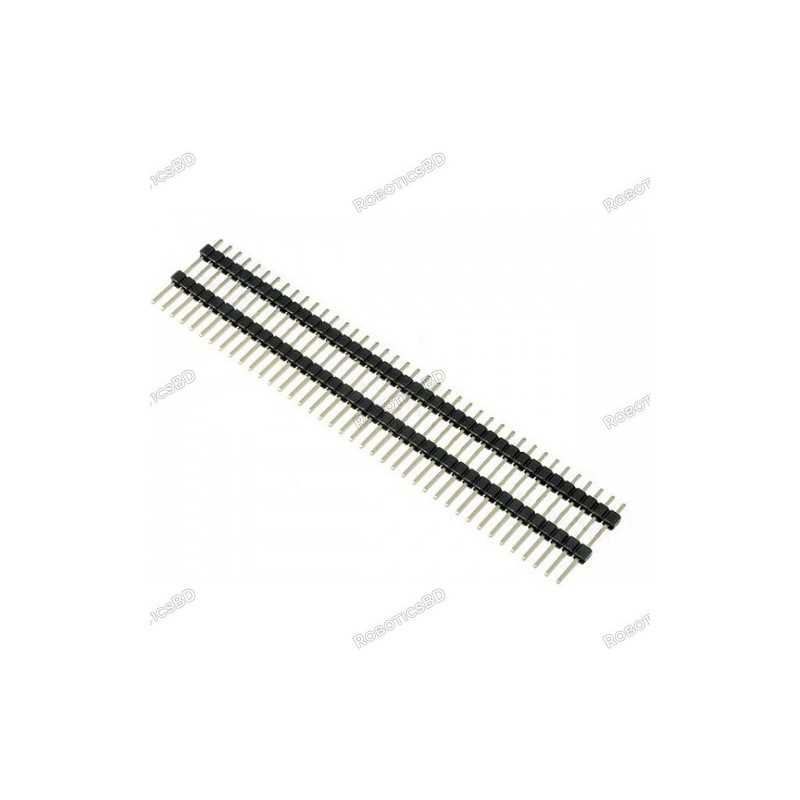

It is a 2.54mm 1×40 Pin Male Single Row Double Insulator Straight Long Header Strip. It has one row of 40 pins. Ideal for through-hole mounting. It has 25mm long pins and the double plastic spacer can be adjusted according to the application. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
| General Specification | |
| Connector | Header Strip |
| Gender | Male |
| Mounting Type | Through Hole |
| Pin Length (mm) | 25 |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (MΩ) | ≥1000 |
| Length (mm) | 101 |
| Width (mm) | 2.4 |
| Height (mm) | 35 |
| Weight (gm) | 3 (each) |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Male Pin Header Single Row Long Double Insulator 40 Pin 25mm Height
The latest price of Male Pin Header Single Row Long Double Insulator 40 Pin 25mm Height in Bangladesh is BDT 35 You can buy the Male Pin Header Single Row Long Double Insulator 40 Pin 25mm Height at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
