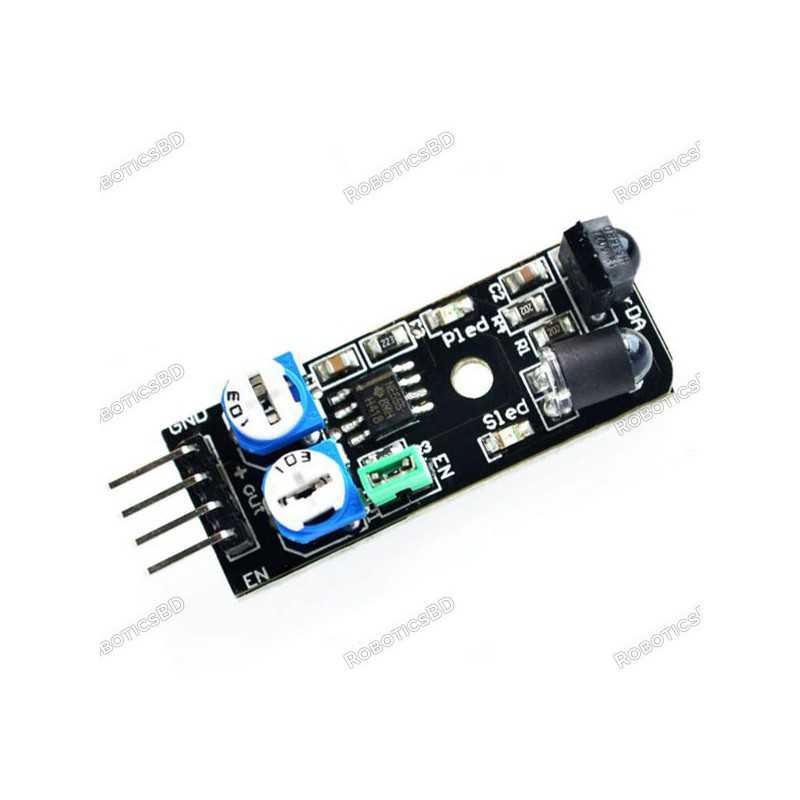

This Infrared Obstacle Avoidance Sensor Module is an inexpensive solution to avoidance detection for robotics and other electronics uses.
It comes as an assembled module, as shown above, there are only four pins: +5-volts, GND, output, and EN. Output is an active LOW and has an onboard status LED. It’s very easy to interface directly with Arduino or other micro-controllers. It also works with the Raspberry Pi with a voltage range of 3-6 volts. Connect Vcc to 3-volts!
The enable pin “EN” will disable the device when HI (Vcc) and enable when LO (GND). The onboard jumper can be left open to allow external control of enable/disable of the module. I see no use for this function and would leave the jumper on and the pin disconnected. There are two potentiometers on the module one controlling operating frequency (centred at 38 kHz) the other controlling intensity. The detector was designed for 38 kHz and the onboard oscillator circuit is based on a 555 timer. Tweaking gives a little better range but I’d suggest leaving it alone because the useful range is narrow. It worked well as is. The maximum reliable range in my test was around 30-40 cm and depended on the type of material. A smooth white surface worked far better than a black or rough surface.
int detector = 8; // define the obstacle avoidance sensor interface
int val ;
void setup ()
{
pinMode(13, OUTPUT); // Built in Arduino LED
digitalWrite (13, LOW);
pinMode (detector, INPUT) ;// define the obstacle avoidance sensor output interface
}
void loop ()
{
val = digitalRead (detector) ;
if (val == HIGH) // When the obstacle avoidance sensor detects a signal, LED flashes
{
digitalWrite (13, HIGH);
delay(100);
}
else
{
digitalWrite (13, LOW);
delay(100);
}
}
1 x Infrared Obstacle Avoidance Sensor Module
The latest price of HW-488 Infrared Obstacle Avoidance IR Sensor Module in Bangladesh is BDT 195 You can buy the HW-488 Infrared Obstacle Avoidance IR Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
