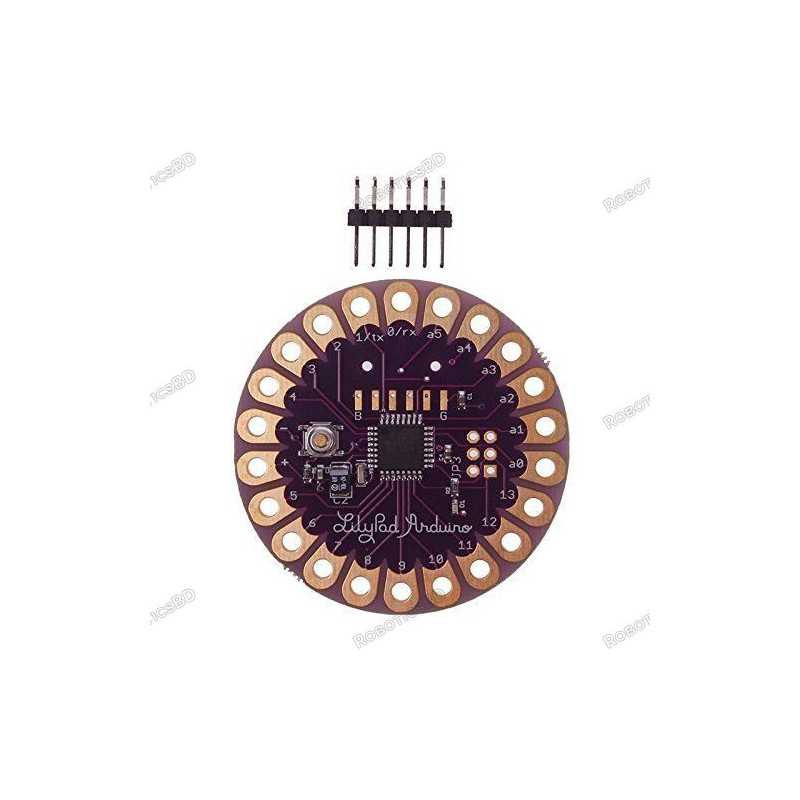

The Lilypad Arduino ATMega328P 16M HW-1 Board is a compatible Arduino-program micro-controller is designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. With wide tabs that can be sewn down and connect with conductive thread. RoboticsBD
The Lilypad consists of an ATmega328 compatible with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible.
This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch). Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Each Lilypad was creatively designed to have large connecting pads to allow them to be sewn into clothing.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model Type | LilyPad |
| Microcontroller Chip | ATmega168 or ATmega328V |
| Operating Voltage (VDC) | 2.7 ~ 5.5 |
| Input Voltage(Recommended) | 2.7V-5.5 V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 |
| PWM Digital I/O Pins | 6 |
| Flash Memory | 16 KB |
| SRAM | 1 |
| EEPROM | 512 bytes |
| DC Current per I/O Pin (mA) | 40 |
| Diameter (mm) | 50 |
| Weight (gm) | 8 |
| Shipment Weight | 0.012 kg |
| Shipment Dimensions | 5 × 5 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Arduino LilyPad 328 ATmega328P.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Arduino LilyPad 328 ATmega328P in Bangladesh is BDT 699 You can buy the Arduino LilyPad 328 ATmega328P at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
