Uses infrared to detect a reflective line on the floor.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

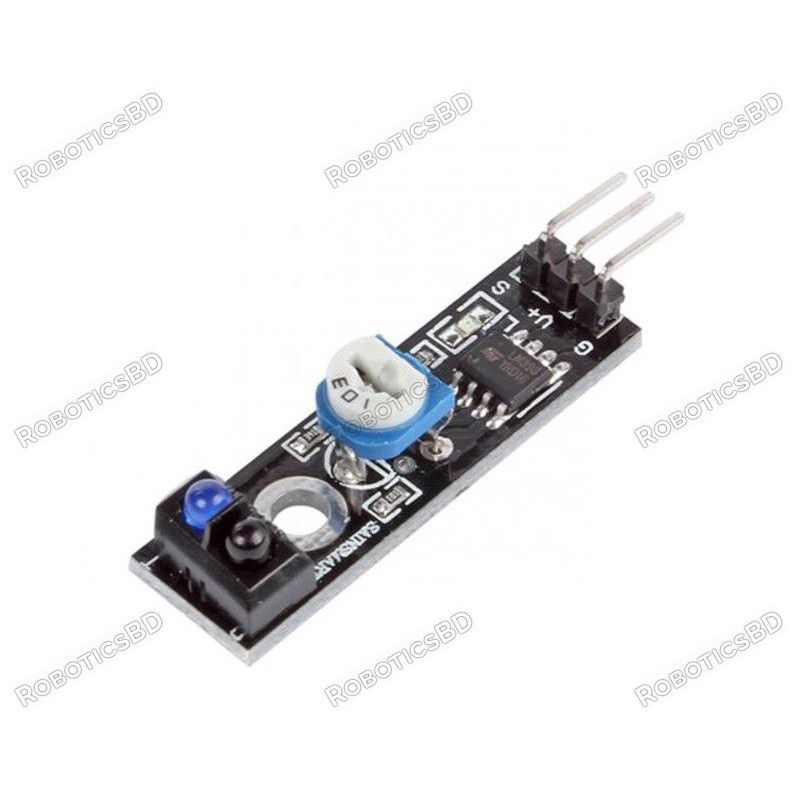

The Optical Tracking Sensor Module is a line tracking module that uses infrared to detect a reflective line on the floor.
This Optical Tracking Sensor, sometimes called a Line Tracking Sensor, uses an infrared (IR) emitting LED and IR Receiver pair to detect a reflective surface in front of the sensor. These sensors are typically used in robotics to track a reflective line on the floor. It can also be used to detect any reflective surface that comes close to it.
The output of the module is normally HIGH. When a reflective surface (typically white) is brought near to the sensors, the output goes LOW and the on-board LED illuminates. When a non-reflective surface (typically black or dark colored) is brought near, the output stays HIGH. Maximum detection distance is generally around 1″. There is an on-board LM393 voltage comparator and a 10K potentiometer that allows you to fiddle with the sensitivity of the detection.
The maximum range that it can detect a reflective surface depends on the operating voltage. When operated at 5V, the range is about 1″. At lower operating voltages, the maximum detection range decreases. At 3.3V, the range decreases to about 0.6″.
To track a line, 2 or more sensors are generally used so that it can be more easily determined which side of the line the robot is on since one sensor will just tell you if you are on the line or not, but not how to correct course. Another option to consider is our 3-sensor line tracking module available below.
There is a 3-pin header on the assembly for making connections. There are a couple of different labeling schemes used on this header.
1 x 3 Header
This is a commonly used module for basic robotic line tracking experiments and is a good way to get started with basic robotic movement experiments as it is relatively straightforward to read the sensors and modify direction based on the feedback received. These modules can sometimes find use in other applications such as keeping the detector stationary and detecting when a reflective object passes in front of the sensor.
The board has two large holes that can be used for mounting if desired.
The latest price of Optical Infrared Reflective Sensor Module in Bangladesh is BDT 150 You can buy the Optical Infrared Reflective Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
