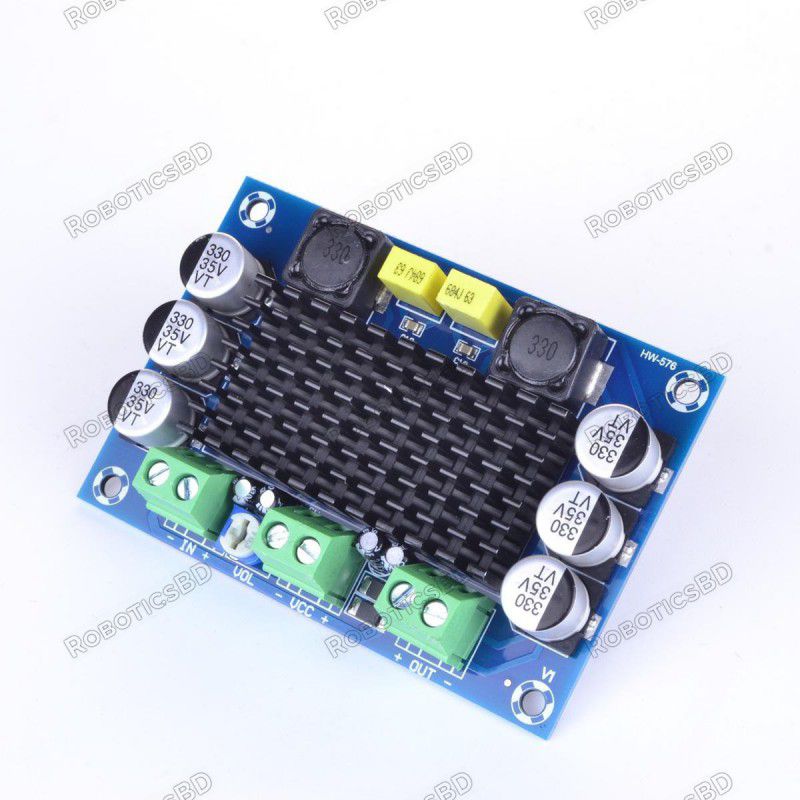

The XHM542 High Power Digital Audio Amplifier is a compact and powerful solution designed for delivering exceptional audio clarity and performance. Built around the reliable TPA3116D2 amplifier chip, this module can deliver up to 100W of output power, making it ideal for a wide range of applications requiring clear, powerful, and distortion-free sound.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The XHM542 High Power Digital Audio Amplifier is a compact and powerful solution designed for delivering exceptional audio clarity and performance. Built around the reliable TPA3116D2 amplifier chip, this module can deliver up to 100W of output power, making it ideal for a wide range of applications requiring clear, powerful, and distortion-free sound.
Operating with a wide voltage range of DC12-26V (recommended at 24V) and featuring a high signal-to-noise ratio of 100dB, this amplifier ensures stable operation with minimal background noise. Its mono output configuration makes it especially suitable for projects requiring single-channel high-fidelity audio output, such as subwoofer systems, portable sound systems, and DIY audio projects.
High Power Output: Delivers up to 100W, suitable for 2-8Ω speakers
Advanced TPA3116D2 Chip: Ensures high efficiency, low distortion, and stable performance
Wide Voltage Range: Operates from DC12V to 26V (recommended 24V) for flexible setups
Superior Audio Clarity: 100dB signal-to-noise ratio provides crystal-clear sound
Mono Channel Output: Ideal for subwoofer or single-channel audio applications
Compact Size: Measures just 79mm x 54mm, perfect for space-limited projects
High Compatibility: Works seamlessly with a variety of speaker types (2-8Ω)
| Feature | Specification |
|---|---|
| Product Type | XH-M542 |
| Amplifier Chip | TPA3116D2 |
| Power Supply Voltage | DC12-26V (Recommended 24V) |
| Input Current | >3A |
| Output Power | Maximum 100W |
| Speaker Output | 2Ω to 8Ω |
| Input Impedance | 10KΩ |
| Signal-to-Noise Ratio | 100dB |
| Channel | Mono |
| Module Size | 79mm x 54mm |
Connect a DC power supply (12V-26V) to the amplifier module (24V recommended for optimal output).
Connect your audio input source to the input terminals.
Connect your 2Ω to 8Ω speaker to the output terminals.
Power on and enjoy high-quality audio output.
DIY portable speaker projects
Subwoofer amplifier systems
Home audio enhancements
Car audio system upgrades
PA systems and single-channel setups
Hobbyist and professional audio projects
1 x XHM542 High Power Digital Audio Amplifier TPA3116D Module
Exceptional audio quality with a high signal-to-noise ratio
High efficiency with minimal heat generation
Compact and durable design ideal for various applications
Simple wiring and easy integration into DIY or professional audio systems
Cost-effective solution for powerful, distortion-free audio performance
Upgrade your sound projects with the XHM542 High Power Digital Audio Amplifier – TPA3116D.
Order now and experience powerful, high-fidelity audio in a compact and efficient package!
The latest price of XHM542 High Power Digital Audio Amplifier TPA3116D in Bangladesh is BDT 675 You can buy the XHM542 High Power Digital Audio Amplifier TPA3116D at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
