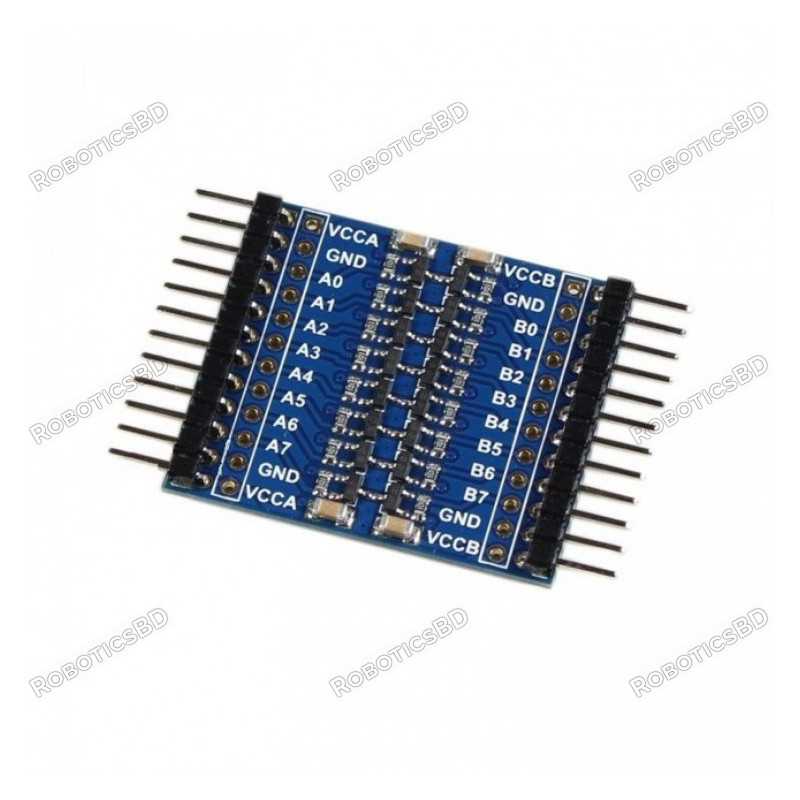

8 Channel Bi-Directional Logic Level Converter

RBD-1368

The module allows you to exchange data between systems that use the most popular voltages: from 3.3 V to 5.5 V and vice versa. Eight channels allow for connection of various communication interfaces.

  • Voltage level: 1.8V-6V


  • Dimension: 38mm x 31.6mm
  • Conversion  level  range:  1.8 V-6 V
  • Instructions for use:  (3.3 V,  5 V  to  each other)
  • 4 pairs of power supply interfaces, supports more situation
  • Use tantalum capacitors for power filter, provides more stability
  • VCCB 5V  power supply  (can  be an external  5V power supply)
BDT 200
rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4
Quantity
In-Stock

81 people have purchased this item recently
36 people added this item to the cart in last 10 days
32 items in stock in Uttara, Dhaka
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

Raspberry Pi 8 channel Level Switching (3.5V to 5V) IO Module Logic Level Converter is able to convert signals from 5V down to 3.3V (and vice versa) meaning you can safely use 5V or 3.3V devices with the Raspberry Pi (compatible). Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Because raspberries GPIO is  3.3 V, so regular 5 V sensor is not easy.

Therefore the product realization 8 – channel high – voltage logic and logic low voltage bi-directional transformations embodiment Ax and Bxbi-directional conversion between the two. RoboticsBD

How to Use?

In the case of translating between 3.3V and 5V system:

  1.     VCCA/VA connects to the 3.3V power supply
  2.     VCCB/VB connects to the 5V power supply
  3.     GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
  4.     When Ax has TTL 3.3V input, Bx will get TTL 5V output
  5.     When Bx has TTL 5V input, Ax will get TTL 3.3V output
  6.     NO direction control required

Features :

  1. VCCA Raspberry 3.3 V
  2. 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
  3. 4 pairs of power supply interfaces, supports more situation
  4. Use tantalum capacitors for power filter, provides more stability
  5. VCCB 5V  power supply  (can  be an external  5V power supply)
  6. GND connect the negative pole

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Voltage Level 1.8V to 6V
Conversion Level Range 1.8V to 6V
Weight (gm) 4
Shipment Weight 0.005 kg
Shipment Dimensions 6 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 8 Channel Logic Level Converter.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of 8 Channel Bi-Directional Logic Level Converter in Bangladesh?

The latest price of 8 Channel Bi-Directional Logic Level Converter in Bangladesh is BDT 200 You can buy the 8 Channel Bi-Directional Logic Level Converter at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1368
32 Items
Filter reviews
(4)
(0)
(0)
(0)
(0)
(0)
Reset

All product reviews are from verified purchases and are comply with DIRECTIVE (EU) 2019/2161
good
rating
It was intake and good quality project.
Good product
rating
Received well
Logic Level Converter
rating
Working perfectly. Thanks for availability of this product.
8 Channel Logic Level Converter
rating
Works fine without any issue
