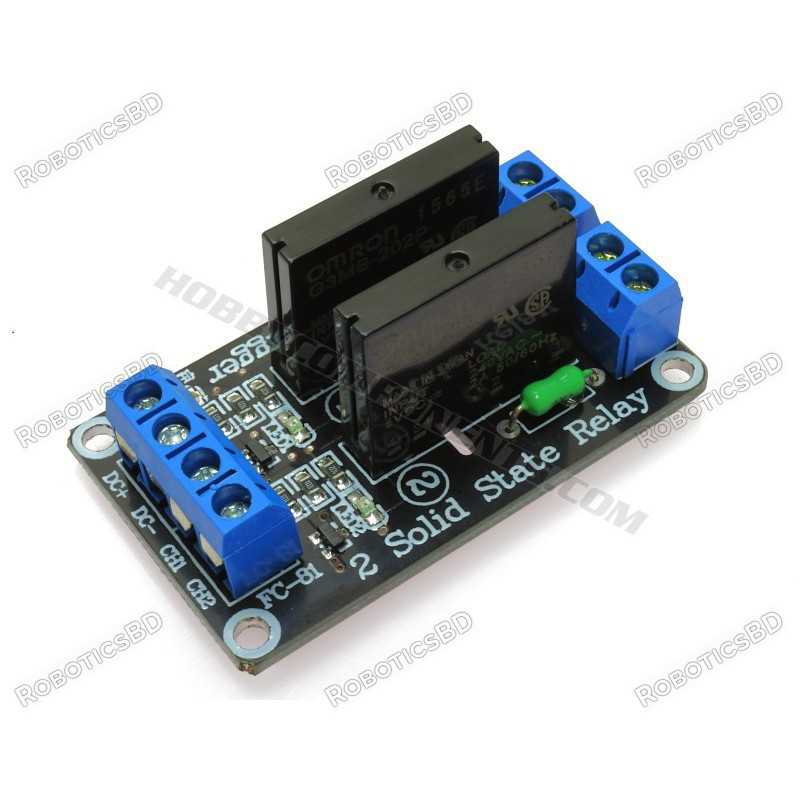

This is 2 Channel 5V Solid State Relay Module. A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays. RoboticsBD
A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay. RoboticsBD
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
You cannot test a solid state relay with Multi-meter. these devices require a minimum amount of voltage/current across the input before the output device will conduct. Most multimeters are designed to simply provide a small amount of voltage in order to measure the ensuing current draw. Therefore, when measuring a solid-state device, the meter will typically report an open circuit (or very high impedance) because it cannot put out enough to turn on the relay.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Part Number: | G3MB-202P |
| Power supply: | 5VDC/160mA |
| Trigger Voltage (VDC): | 5 |
| Switching Voltage (VAC): | 240@2A |
| Isolation: | Phototriac |
| Zero Cross: | Yes |
| Length (mm): | 57 |
| Width (mm): | 30 |
| Height (mm): | 24 |
| Weight (gm): | 18 |
| Shipment Weight | 0.020 kg |
| Shipment Dimensions | 6 × 3 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 5V 2 Channel Solid State Relay (SSR)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 5V 2 Channel Solid State Relay (SSR) in Bangladesh is BDT 355 You can buy the 5V 2 Channel Solid State Relay (SSR) at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
