The LM358 Duty and Frequency Adjustable Square Wave Signal Generator is a compact and versatile module designed for pulse signal generation, motor control, microcontroller triggering, and circuit testing. Featuring an adjustable duty cycle and frequency, this module provides users with a fine-tuned square wave output for various applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

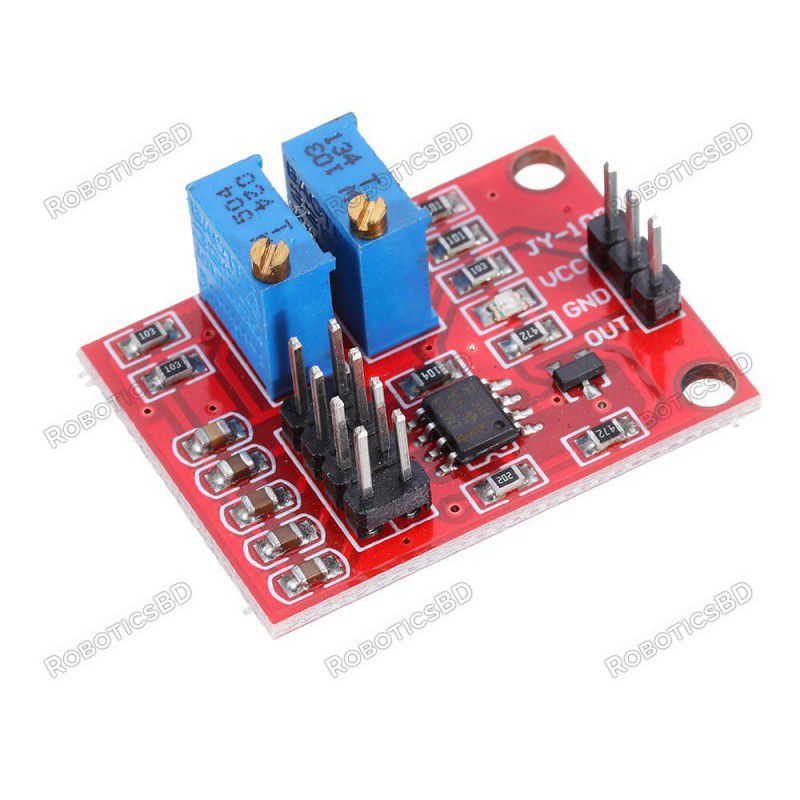

The LM358 Duty and Frequency Adjustable Square Wave Signal Generator is a compact and versatile module designed for pulse signal generation, motor control, microcontroller triggering, and circuit testing. Featuring an adjustable duty cycle and frequency, this module provides users with a fine-tuned square wave output for various applications.
Equipped with an LED output indicator, the module offers real-time visual feedback on signal status. The frequency range is divided into four levels for precise adjustment, making it ideal for both low and high-frequency signal applications.
This module is an excellent tool for circuit development, waveform testing, and frequency tuning, making it a must-have for engineers, hobbyists, and embedded system developers.
✔ Adjustable Duty Cycle & Frequency – Fine-tune pulse width and signal frequency as needed
✔ Wide Frequency Range – Covers 0.07Hz to 200kHz, suitable for multiple applications
✔ LED Output Indicator – Visual feedback of the output signal status
✔ Stable & Reliable Output – LM358-based design ensures precise signal generation
✔ Multiple Frequency Levels – Supports four selectable frequency bands
✔ High Output Current Drive – Can drive small relays, motors, or external circuits directly
✔ Compact & Easy to Use – Simple screw terminal connections for quick integration
| Specification | Details |
|---|---|
| Main Chip | LM358 |
| Input Voltage | 5V-15V DC |
| Input Current | ≥ 100mA |
| Output Level | 4.2V V-PP ~ 11.4V V-PP |
| Output Current | Up to 500mA (via 9012 transistor driver) |
| Frequency Range | 0.07Hz - 200kHz |
| Duty Cycle Adjustment | 0% - 100% |
| Output Waveform | Square Wave |
| Output Indicator | LED blinks according to frequency |
| Board Size | Compact and lightweight for easy integration |
The latest price of LM358 Duty And Frequency Adjustable Square Wave Signal Generator in Bangladesh is BDT 350 You can buy the LM358 Duty And Frequency Adjustable Square Wave Signal Generator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
