Buck Converter Voltage Regulator – LM2596 Replacement
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

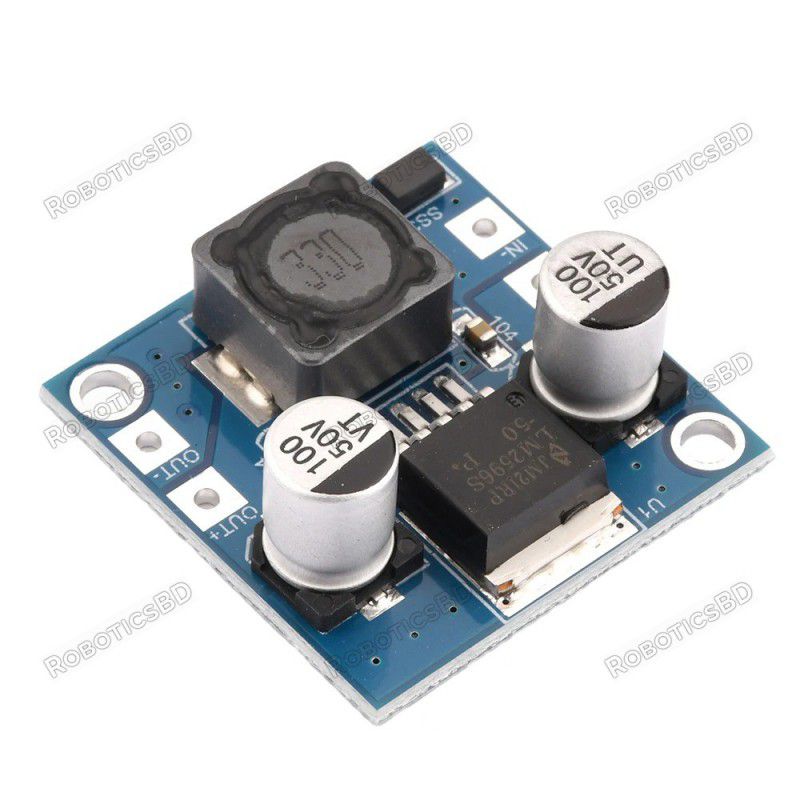

Buck Converter Voltage Regulator – LM2596 Replacement
Output Voltage: 12V (Stable)
Output Current: <3A (Recommended ≤2A for long-term use)
Input Voltage: 7V - 40V (Ensure input is 1.5V higher than output)
Size: 32mm × 32mm
Wiring Methods:
A: Direct soldering to input/output ports
B: Pin insertion using connecting wires
Use within 1A for continuous operation; add a heatsink if exceeding 5W output
Do not reverse input and output connections, as it may damage the module
Do not exceed 40V input voltage to avoid permanent damage
Voltage Adjustment – Provides stable power to electronic devices
System Testing & Debugging – Ideal for project development
Power Supply for Microcontrollers & Industrial Control Boards
Smart Home, IoT, Communication, & Security Systems
Package Includes:
1 x XH-M161 Step-Down Module (DC 7-40V to DC 12V 1A)
Perfect for DIY electronics, robotics, and industrial applications! Order now!
The latest price of XH-M161 Step-Down Module DC 7-40V to DC 12V 1A in Bangladesh is BDT 190 You can buy the XH-M161 Step-Down Module DC 7-40V to DC 12V 1A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
