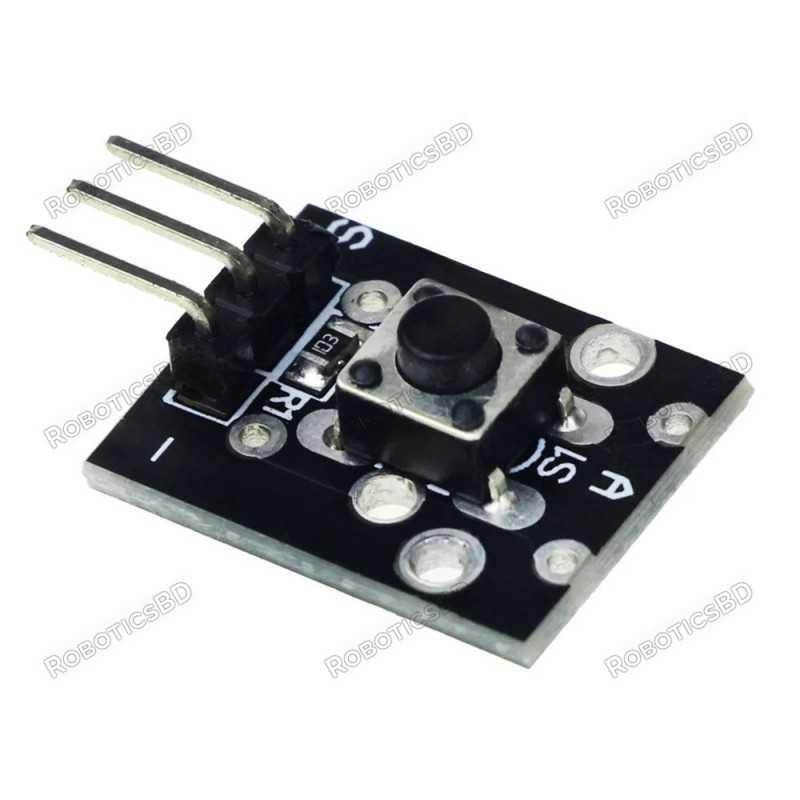

This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed.
The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 kΩ.
The module is designed for two contacts: when pressed, they are closed and open when released. There are also 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
| General Specification | |
| Operating Voltage (VDC) | 5 |
| Contact Resistance | ≤50 MΩ |
| Operating Temperature Range (°C) | -25 to 105 |
| Mech. & Electrical Lifecycle | ≈ 100,000 |
| PCB thickness | 1.5 mm |
| Length (mm) | 20 |
| Width (mm) | 16 |
| Height (mm) | 7 |
| Weight (gm) | 1 (approx.) |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Momentary Tactile Push Button Module DC 5V 12V Switch
The latest price of Momentary Tactile Push Button Module DC 5V Switch in Bangladesh is BDT 50 You can buy the Momentary Tactile Push Button Module DC 5V Switch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
