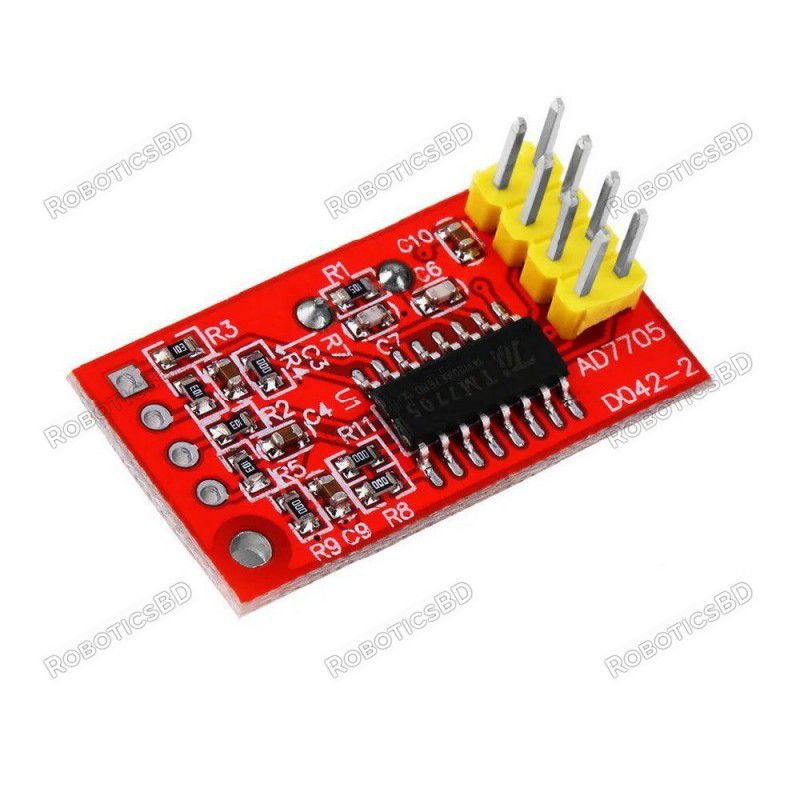

The AD7705 Analog-to-Digital Converter (ADC) Module is a high-precision, low-frequency measurement solution designed for direct interfacing with microcontrollers or DSP-based systems. Featuring a 16-bit resolution, dual-channel input, and SPI communication, this module allows for flexible gain settings, signal polarity adjustment, and update rate selection through simple software commands.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The AD7705 Analog-to-Digital Converter (ADC) Module is a high-precision, low-frequency measurement solution designed for direct interfacing with microcontrollers or DSP-based systems. Featuring a 16-bit resolution, dual-channel input, and SPI communication, this module allows for flexible gain settings, signal polarity adjustment, and update rate selection through simple software commands.
Engineered with an integrated voltage divider resistor network and RC filter, the AD7705 module provides a stable, reliable signal acquisition platform, making it ideal for high-accuracy data conversion applications where precision and adaptability are essential.
16-bit resolution for precise analog-to-digital conversion
Dual-channel input supporting differential or single-ended measurements
SPI communication interface for easy integration with microcontrollers or DSP systems
Configurable gain settings, signal polarity, and sampling rates via software
Integrated voltage divider resistors and RC input filter for improved signal integrity
Built-in buffer amplifier for direct sensor connections
Compact module design for easy embedded system integration
Chipset: AT24C256
Maximum Operating Voltage: 6.25V
Output Current: 5mA
Operating Temperature: -55°C to +125°C
Storage Temperature: -65°C to +150°C
Module Size: 37mm x 12mm x 12mm (L x W x H)
Connect the module's SPI pins (MOSI, MISO, SCK, CS) to your microcontroller.
Configure gain, signal polarity, and sampling rate using SPI commands.
Apply your analog signal input directly or through the onboard voltage divider.
Read high-precision 16-bit digital output for processing or monitoring.
Smart microcontroller-based systems
Digital signal processing (DSP) applications
High-accuracy sensor interfacing
Industrial process control systems
Scientific instrumentation requiring precise analog measurements
1 x AD7705 16-Bit ADC Analog Digital Converter Module
High-resolution 16-bit conversion for sensitive analog measurements
Dual-channel capability for flexible application needs
Robust SPI communication ensures easy, reliable integration
Integrated signal conditioning improves system accuracy and stability
Designed to perform across a wide temperature range, making it suitable for harsh environments
Upgrade your analog measurement projects with the AD7705 16-Bit ADC Analog Digital Converter Module.
Order now to achieve greater precision, flexibility, and performance in your designs!
The latest price of AD7705 16-Bit ADC Analog Digital Converter Module in Bangladesh is BDT 390 You can buy the AD7705 16-Bit ADC Analog Digital Converter Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
