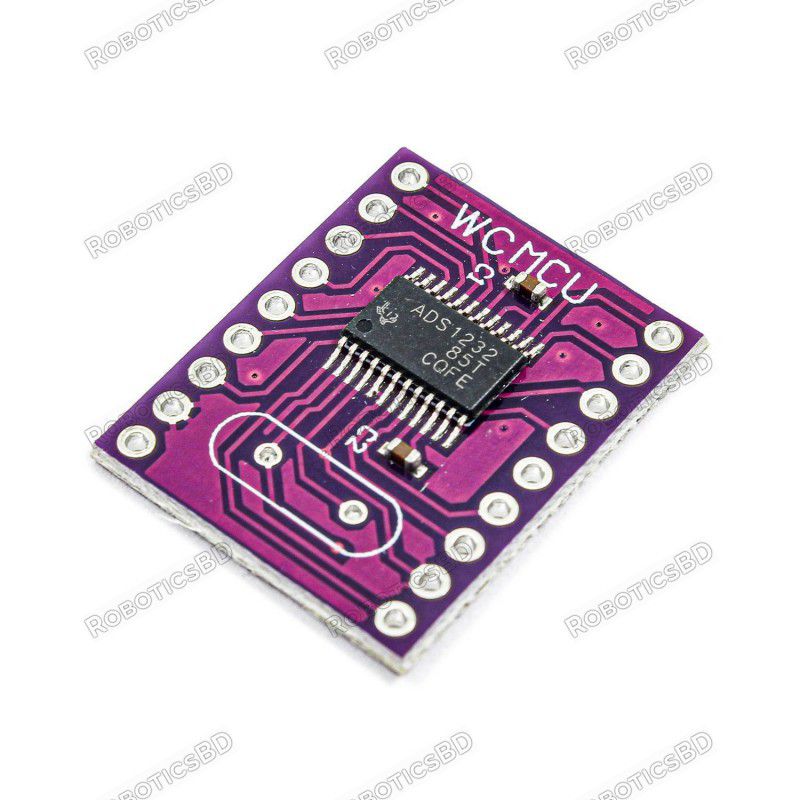

The ADS1232 24-Bit ADC Analog Digital Converter Module is a compact, high-precision, low-noise solution ideal for applications requiring accurate measurement of small sensor signals, such as load cells, pressure sensors, and temperature monitoring. Powered by the ADS1232 chip, this module integrates a low-noise amplifier, programmable gain, internal oscillator, and optional temperature sensor selection to simplify system design and deliver exceptional performance.

Operating within a wide voltage range of 2.7V to 5.3V, the ADS1232 is easily adaptable to various electronic systems and environments. Its 24-bit resolution ensures fine-grained, high-accuracy measurements, making it ideal for industrial, laboratory, and portable applications where precision is critical.

Key Features:

• 24-bit ADC resolution for ultra-precise analog-to-digital conversion

• Wide operating voltage range: 2.7V to 5.3V

• Integrated low-noise amplifier with programmable gain

• Built-in internal oscillator, eliminating the need for an external clock source

• Multiple input channels: Supports Wheatstone bridge sensor configurations

• Compact and robust design, easy to integrate into various systems

• Optional temperature sensor input for enhanced application flexibility

• Low power consumption, suitable for battery-powered applications

• High noise immunity for reliable operation in harsh environments

Technical Specifications:

• ADC Resolution: 24-bit

• Supply Voltage: 2.7V to 5.3V

• Signal Input: Supports two differential or single-ended inputs

• Gain Settings: Configurable via GAIN0 and GAIN1 pins

• Output Interface: Serial (SPI-like) two-wire data transmission

• Internal Oscillator: Provides clock signal without external crystal

• Operating Temperature Range: -40°C to +125°C

• Module Size: Compact form factor for flexible installation

Pinout Description:

• 3V: Power supply 3.3V

• 5V: Power supply 5V

• GND: Ground

• REFP: Reference Voltage Positive

• SCLK: Source Clock Input

• DOUT: Data Output

• POMN: Power Control

• SPEED: Data Rate Selection

• GAIN0, GAIN1: Gain Selection

• TEMP: Temperature Sensor Enable

• A0: First Analog Input

• CLKIN: External Clock Input

• AINP1, AINP2: Wheatstone Bridge Sensor Inputs

How to Use:

1. Power the module with 3.3V or 5V depending on your system.

2. Connect analog inputs (e.g., load cells) to AINP1 and AINP2.

3. Connect SCLK and DOUT to your microcontroller for SPI-style communication.

4. Configure gain, speed, and input settings as needed via control pins.

5. Capture 24-bit precision data for high-resolution measurement applications.

Note: Proper calibration and stable power supply are crucial for achieving maximum accuracy.

Applications:

• Precision weight scales and load cell systems

• Industrial process monitoring

• Scientific instrumentation

• Pressure and force sensing

• High-accuracy temperature measurement

• Portable low-power sensor systems

Package Includes:

• 1 x ADS1232 24-Bit ADC Analog Digital Converter Module

Why Choose the ADS1232 ADC Module?

• Ultra-high resolution 24-bit conversion for extremely accurate measurements

• Integrated features (oscillator, temperature sensor) simplify design

• Compact and flexible for a variety of applications

• Ideal for Wheatstone bridge sensors like load cells

• Reliable performance even in demanding industrial environments

Expand your precision measurement capabilities with the ADS1232 24-Bit ADC Analog Digital Converter Module.
Order now to bring outstanding accuracy and reliability to your sensor-based projects!

What is the price of ADS1232 24-Bit ADC Analog Digital Converter Module in Bangladesh?

The latest price of ADS1232 24-Bit ADC Analog Digital Converter Module in Bangladesh is BDT 595 You can buy the ADS1232 24-Bit ADC Analog Digital Converter Module at best price from our RoboticsBD or visit RoboticsBD Office.
