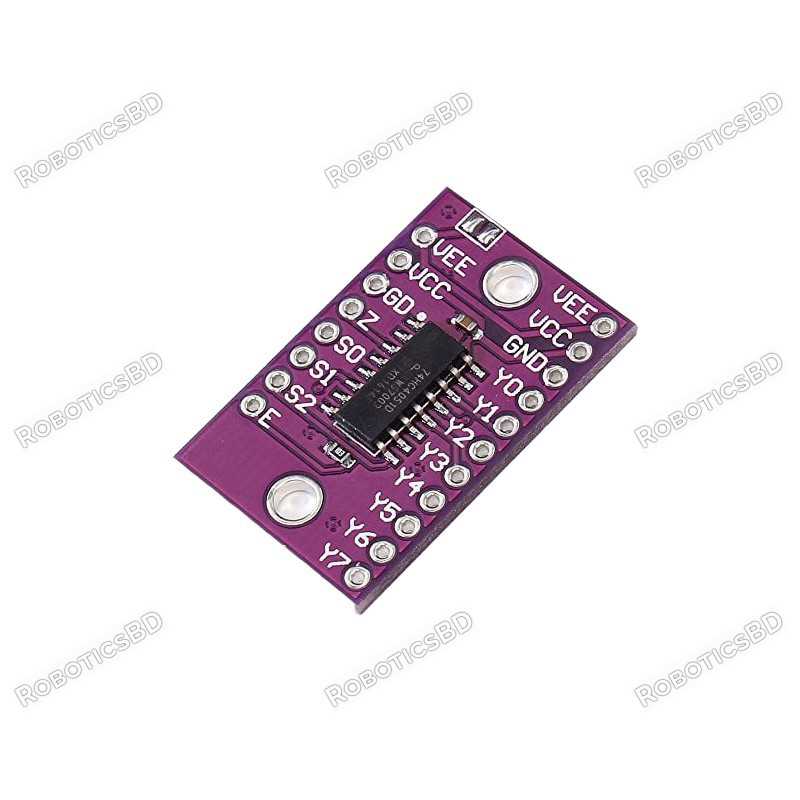

The CJMCU-4051 74HC4051 Analog Multiplexer/Demultiplexer Breakout Board is a versatile module designed for efficient signal routing in Arduino and microcontroller projects. Equipped with the 74HC4051 SP8T analog switch, it provides eight independent channels for input/output selection using three digital control pins (S0, S1, S2). With a wide analog input voltage range of ±5V and low “ON” resistance, it ensures minimal signal loss. Logic level translation allows seamless communication between 5V logic systems and ±5V analog signals. Its compact 30 x 19mm design makes it ideal for prototyping, signal multiplexing, and sensor interfacing. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Chip Model | 74HC4051 |
| Type | Single-pole 8-throw (SP8T) analog switch |
| Analog Voltage Range | ±5V |
| “ON” Resistance | 60-80 ohms (typical, depending on Vcc) |
| Digital Control Pins | S0, S1, S2 |
| Enable Pin | E (HIGH to turn off switches) |
| Logic Level Translation | 5V logic to ±5V analog signals |
| Board Dimensions | 30 x 19 mm |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 3 x 2 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino in Bangladesh is BDT 250 You can buy the CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
