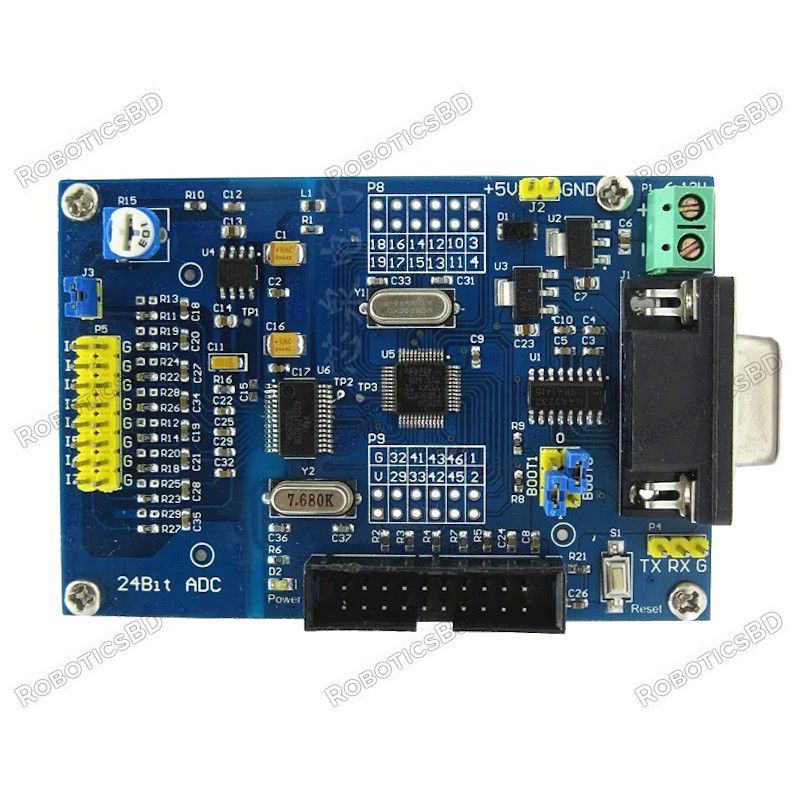

The ADS1256 24-bit ADC Module is a high-precision, 8-channel analog-to-digital converter board designed for demanding data acquisition applications. Combining the powerful STM32F103C8T6 microcontroller with the ADS1256 ADC chip, this module ensures accurate, low-noise, and reliable analog-to-digital conversion, ideal for industrial control, laboratory instrumentation, and scientific measurement systems.

The board features onboard voltage regulation, anti-reverse power protection, and easy serial communication, offering exceptional convenience for both development and deployment. With a potentiometer for testing, accessible GPIO ports, and a simple serial programming interface, this module is engineered for fast integration into a wide variety of systems.

Key Features:

• High-precision 24-bit ADC (ADS1256) with up to 8 analog input channels

• Onboard MCU: STM32F103C8T6 for control and communication management

• Dual power options: 5V and 3.3V onboard regulation or 9V external DC input

• Internal crystal oscillator: 8MHz crystal (MCU runs at 72MHz)

• Reference Voltage: Precision 2.5V regulator for stable ADC performance

• Serial port communication: Supports direct connection with PCs via USB-TTL

• Onboard potentiometer: Allows easy analog input testing on AN0 to AN7

• Anti-reverse power protection ensures safe operation

• Convenient GPIO breakout: All STM32F103C8T6 pins accessible for secondary development

• User-friendly features: Power indicator LED, reset button, and optional JTAG programming interface

Technical Specifications:

• Dimensions: 82.8mm x 53.4mm x 1.6mm

• MCU: STM32F103C8T6 (32-bit ARM Cortex-M3, 72MHz)

• ADC Chip: ADS1256IDB (24-bit, low-noise, high-accuracy ADC)

• Power Supply:

  • 5V and 3.3V onboard voltage regulators

  • 5.5V–12V external DC input range

• Crystal Frequency: 8MHz (internal 72MHz system clock)

• Channels: 8 Analog Input Channels (single-ended or differential)

• Reference Voltage: 2.5V (high precision)

• Communication Interface:

  • Serial Port (UART)

  • USB-TTL Interface

• Test Input: Adjustable voltage via onboard potentiometer linked to AIN0

• Serial Output: ASCII format for easy reading with terminal software

• GPIO Access: Full access to STM32F103 GPIOs for flexible development

• Additional Interface: JTAG header compatible with JLINK-V8 or V9

How to Use:

Mode 1 – Single Channel Continuous Reading:

1. The module continuously reads analog input from channel AN0.

2. The converted voltage value is calculated and sent via the serial port in ASCII format.

3. Use serial terminal software to directly view real-time voltage readings, making software development quick and straightforward.

Other Uses:

• Configure for multiple channel reading and switch dynamically.

• Modify firmware via the serial bootloader or JTAG port if advanced features are needed.

Important Connection Notes:

• Use either 5V onboard input or external DC 9V input (not both simultaneously).

• Connect the output UART to a PC or microcontroller to start receiving ADC readings.

Applications:

• High-precision sensor data acquisition

• Industrial automation and process control

• Laboratory data logging and experimentation

• Energy metering and monitoring

• Embedded system development and prototyping

Package Includes:

• 1 x ADS1256 24-bit ADC Module with Serial Output

Why Choose the ADS1256 24-bit ADC Module?

• Superior 24-bit resolution for demanding measurement applications

• Built-in STM32 MCU for streamlined processing and easy communication

• Multiple power options and strong protection features for safer operations

• Ready-to-use interface with onboard potentiometer for quick testing

• Perfect solution for precision analog data collection in professional or DIY systems

Expand your data acquisition capabilities with the ADS1256 24-bit ADC Module with Serial Output.
Order now and start capturing accurate, high-resolution analog data with ease!
