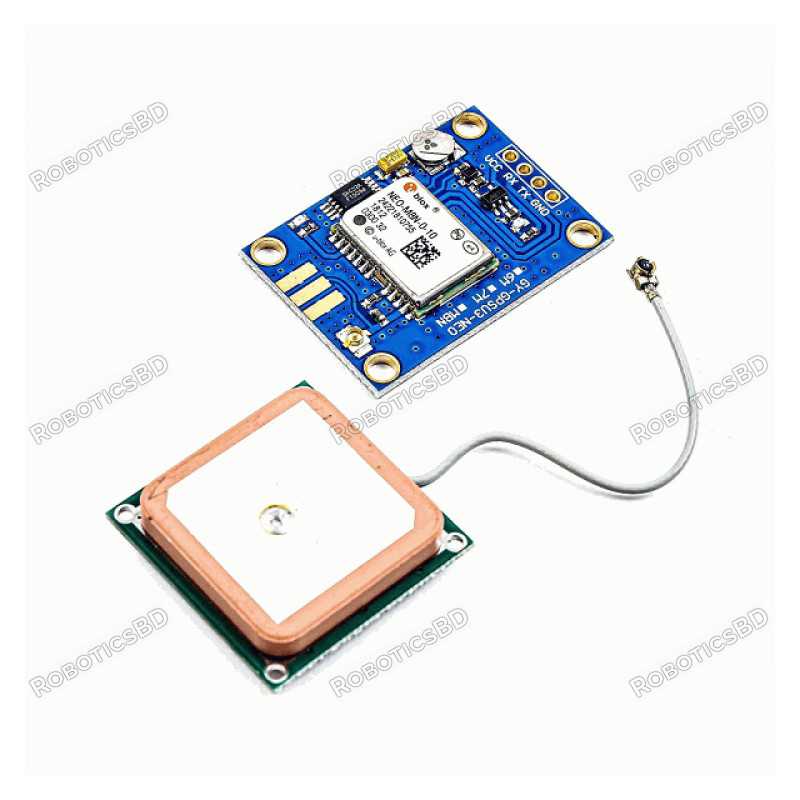

The APM2.5 NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD
The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD
Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The GY-NEO-8M module is an advanced GPS module based on uBlox m8N that supports UART communication protocol with active antenna. You can interface this module easily with a microcontroller. This module has a rechargeable battery and can also be connected directly to a computer using a USB to TTL converter
The on-board LED starts blinking when module is connecting to GPS satellites.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine. |
| Input Supply Voltage (VDC) | 3 ~ 5 |
| Main Chip | Ublox NEO-M8N |
| Sensitivity (dBm) | 156 Cold Start (without aiding): -147 dBm |
| Position Accuracy (Meter) | 2 2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | Antenna: 26 x 26 x 9 Module: 26 x 36 x 4 |
| Weight (gm) | 17 |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 9 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x APM 2.5 NEO M8N GPS Module.
1 x Ceramic Active Antenna.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of NEO-M8N GPS Module with Ceramic Active Antenna New in Bangladesh is BDT 950 You can buy the NEO-M8N GPS Module with Ceramic Active Antenna New at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
