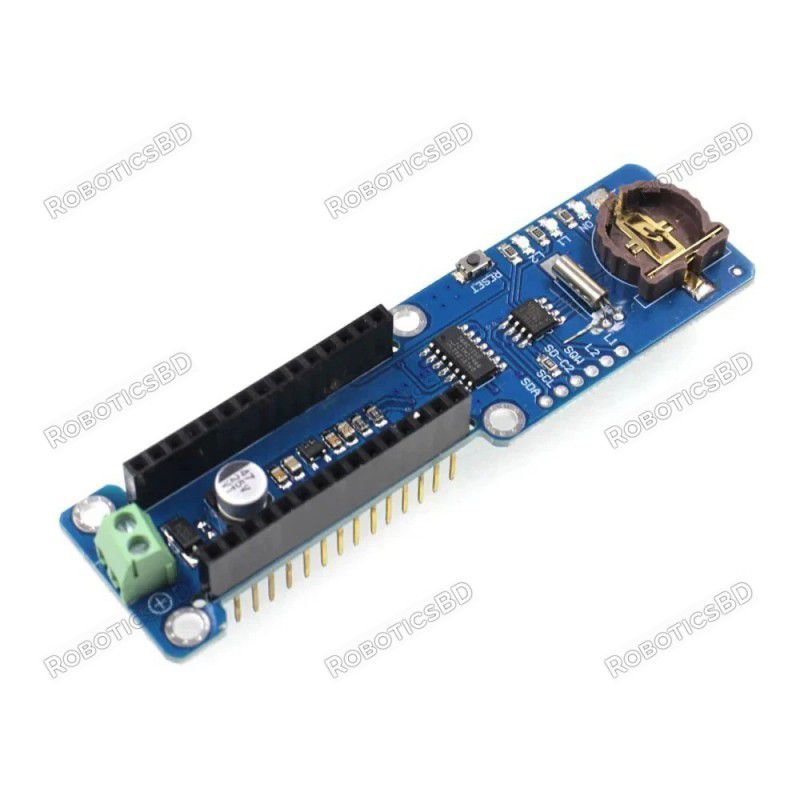

Enhance your Arduino Nano projects with the NANO3.0 Data Logging Expansion Board (Welded)—a feature-rich shield designed to bring time-stamped data storage functionality to your embedded systems. With its built-in SD card interface, Real-Time Clock (RTC), and 3.3V level shifter, this board is perfect for applications involving environmental monitoring, sensor data recording, and more. It also includes a prototype area for custom circuits and an onboard voltage regulator for stable operation.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Enhance your Arduino Nano projects with the NANO3.0 Data Logging Expansion Board (Welded)—a feature-rich shield designed to bring time-stamped data storage functionality to your embedded systems. With its built-in SD card interface, Real-Time Clock (RTC), and 3.3V level shifter, this board is perfect for applications involving environmental monitoring, sensor data recording, and more. It also includes a prototype area for custom circuits and an onboard voltage regulator for stable operation.
Key Features:
Compatible with Arduino Nano
Built-in RTC with battery backup for uninterrupted timekeeping
SD Card Slot supports FAT16/FAT32 formatted cards
3.3V Level Shifter Circuit ensures SD card protection
Pre-soldered Design – plug and play ready
Prototype Area for custom circuit and sensor integration
Multiple Power Sources supported for flexible deployment
I2C and SPI Communication Interfaces
Compact and Efficient Design for embedded applications
Technical Specifications:
RTC Type: Supports timekeeping even when unplugged
SD Compatibility: FAT16 / FAT32
Voltage Regulation: Onboard 3.3V LDO regulator
Interfaces: SPI (SD Card), I2C (RTC)
Battery: CR1220/CR2032 type (not included)
Dimensions: Compact, stackable with Nano form factor
Operating Voltage: 3.3V (regulated), accepts 5V input from Nano
Applications:
Sensor data logging
Time-stamped data acquisition
IoT systems
Weather stations
Industrial monitoring
DIY electronics and automation
Package Includes:
1 x NANO3.0 Data Logging Expansion Board (Welded)
Why Choose This Board?
If you're developing a time-sensitive logging project or need reliable storage for sensor data on your Arduino Nano, this board is your ideal companion. With a built-in RTC and SD card support in a compact, ready-to-use format, it provides all the essential features you need—right out of the box.
Upgrade your Arduino Nano projects with real-time data logging capabilities today!
The latest price of Data Logging Expansion Board DS1307 Soldered for Arduino Nano in Bangladesh is BDT 680 You can buy the Data Logging Expansion Board DS1307 Soldered for Arduino Nano at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
