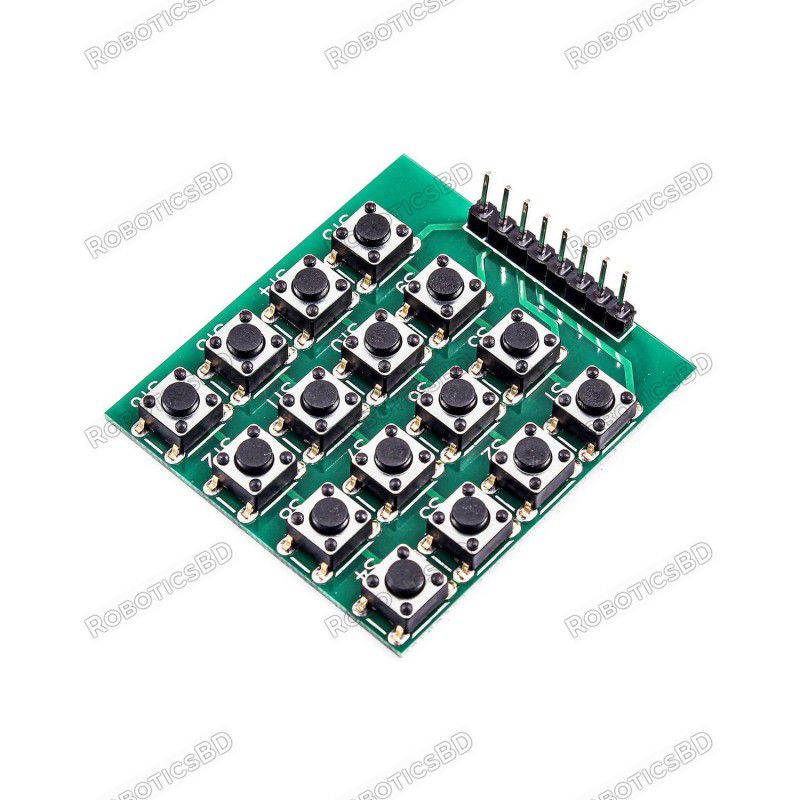

The 4x4 Matrix Keypad Module is a compact and efficient input device designed for microcontroller projects, offering 16 push buttons arranged in a 4-row x 4-column configuration. This non-encoded matrix keypad enables simple and flexible data entry for various applications, such as password authentication, menu navigation, and user interfaces.
Each button press connects a specific row and column, allowing easy detection of key presses through microcontroller programming. The module comes pre-soldered with pin headers, making it plug-and-play for Arduino, Raspberry Pi, ESP32, and other microcontrollers.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 4x4 Matrix Keypad Module is a compact and efficient input device designed for microcontroller projects, offering 16 push buttons arranged in a 4-row x 4-column configuration. This non-encoded matrix keypad enables simple and flexible data entry for various applications, such as password authentication, menu navigation, and user interfaces.
Each button press connects a specific row and column, allowing easy detection of key presses through microcontroller programming. The module comes pre-soldered with pin headers, making it plug-and-play for Arduino, Raspberry Pi, ESP32, and other microcontrollers.
✔ 16-Button Layout: Provides a simple interface for user input
✔ 4x4 Matrix Configuration: Uses 8-pin connections for efficient wiring
✔ Compact & Space-Saving Design: Ideal for embedded systems and portable devices
✔ Pre-Soldered Pin Headers: Easy to connect to microcontrollers and development boards
✔ Versatile Compatibility: Works with Arduino, Raspberry Pi, ESP32, PIC, and other MCUs
✔ Durable Microswitch Buttons: Ensures long-lasting performance
| Specification | Details |
|---|---|
| Number of Keys | 16 (4x4 Matrix) |
| Row Control Pins | R1, R2, R3, R4 |
| Column Control Pins | L1, L2, L3, L4 |
| Operating Voltage | 3.3V – 5V (Typical for MCU compatibility) |
| Interface | Digital (Row & Column scanning) |
| Button Type | Microswitch Buttons |
| Mounting Holes | 4 x 3mm (M3) Mounting Holes |
| Dimensions | Compact & lightweight |
✔ Password Authentication Systems – Used in security applications for passcode entry
✔ Embedded Systems & Robotics – Provides control inputs for robotic arms, automation, etc.
✔ User Interfaces – Ideal for navigation menus in DIY electronics
✔ Calculator & Data Input Devices – Great for numeric and functional input
✔ Industrial & Educational Projects – Commonly used in STEM education and prototyping
✅ 1 x 4x4 Matrix Keypad Module (Pre-Soldered Pin Headers)
The latest price of 4x4 Micro Switch Matrix Keypad in Bangladesh is BDT 200 You can buy the 4x4 Micro Switch Matrix Keypad at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
