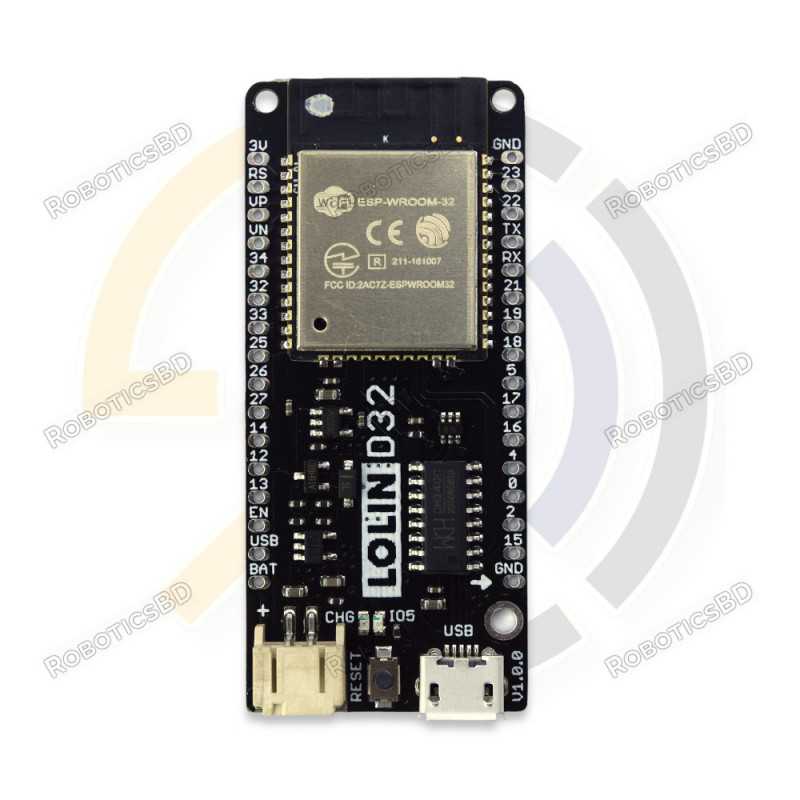

Wemos LOLIN D32 V1 is a microcontroller board based on the ESP32 system-on-a-chip (SoC) and equipped with a CH340C USB-to-serial interface chip. The ESP32 SoC is a powerful and versatile microcontroller that supports both WiFi and Bluetooth connectivity, making it suitable for a wide range of applications.
The board features 4MB of flash memory, which can be used to store the firmware and data, and 520KB of SRAM for temporary data storage. It also includes a built-in voltage regulator that allows it to be powered with a wide range of input voltages, from 5V to 12V DC.
The Wemos LOLIN D32 V1 board has a number of input/output pins, including 11 digital input/output pins and one analog input pin, which can be used to connect to sensors, actuators, and other peripherals. The board also features a micro-USB port for programming and power, and a JST connector for an external battery.
The board is compatible with the Arduino development environment, which makes it easy to write and upload code to the board using a USB cable. Additionally, the board can be programmed using MicroPython, a high-level programming language designed for microcontrollers.
Overall, the Wemos LOLIN D32 V1 is a versatile and powerful microcontroller board that is well-suited for a wide range of projects, particularly those requiring WiFi and Bluetooth connectivity.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
All of the IO pins run at 3.3V.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage | 3.3V |
| Supported Battery | Lipo 3.7V |
| Battery Connector | PH-2 2.0mm |
| Digital I/O Pins | 22 |
| Analog Input Pins | 6 (VP, VN, 32, 33, 34, 35) |
| Analog Output Pins | 2 (25, 26) |
| LED_BUILTIN | GPIO5 |
| Clock Speed(Max) | 240MHz |
| Flash | 4M Bytes |
| Size | 57*25.4mm |
| Weight | 6.1g |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 11 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Wemos LOLIN D32 V1 - ESP32 - CH340C
The latest price of Wemos LOLIN D32 V1 - ESP32 - CH340C in Bangladesh is BDT 499 You can buy the Wemos LOLIN D32 V1 - ESP32 - CH340C at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
