The core of this module is the ESP32 chip, which is scalable and adaptive. Two CPU cores can be individually controlled. The clock frequency is adjustable from 80 MHz to 240 MHz and supports RTOS. RoboticsBD
It is a general-purpose Wi-Fi+BT+BLE MCU module.ESP-WROOM-32s The module integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi. Wide range of uses: Wi-Fi supports a wide range of communication connections, as well as a direct connection to the Internet via a router; Bluetooth allows users to connect to a mobile phone or broadcast a BLE Beacon for signal detection. RoboticsBD
The module supports data rates up to 150 Mbps and antenna output power of 20dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Module model | ESP-WROOM-32 Type C |
| SPI Flash | 32Mbit(default) |
| Support interface | UART/GPIO/ADC/DAC/SDIO/SD card /PWM/I2C/I2S |
| Integrated crystal oscillator | 40MHz Crystal oscillator |
| IO Port | 38 |
| Antenna | Onboard antenna |
| Power Supply | Voltage 3.0V ~ 3.6V，Typical 3.3V，Current >500mA |
| Operating Temperature | -40 ℃ ~ 85 ℃ |
| Storage Environment | -40 ℃ ~ 120 ℃ |
| Length(mm) | 25.4 |
| Width(mm) | 48.26 |
| Height(mm) | 3 |
| Weight(g) | 10 |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 12 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

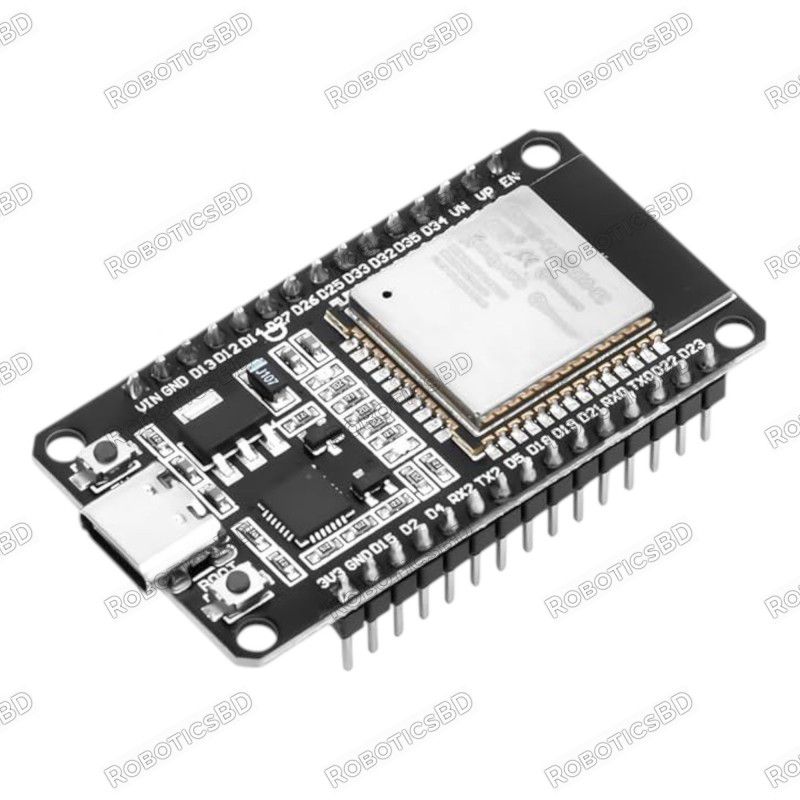

1 x ESP32 ESP-32S 30P NodeMCU Development Board Wireless WiFi
The latest price of ESP32 ESP-32S 30P NodeMCU Development Board Wireless WiFi Type-C in Bangladesh is BDT 490 You can buy the ESP32 ESP-32S 30P NodeMCU Development Board Wireless WiFi Type-C at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
