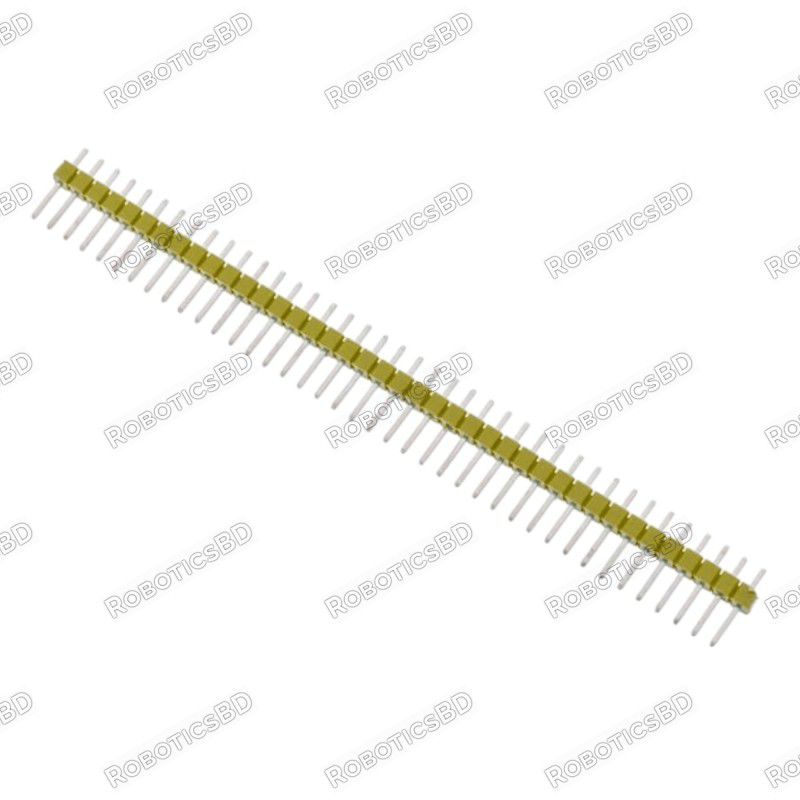

This Male Pin Header Single Row is a versatile component designed for connecting printed circuit boards (PCBs) using through-hole mounting. Featuring a standard 2.54mm pitch and a single row of 40 male pins, this header strip offers easy integration and compatibility with various electronic components. The phosphor bronze contact material ensures durability and reliable electrical connections. This male pin header is ideal for a wide range of electronic projects requiring secure PCB connections. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Connector Type | Male Pin Header |
| Number of Rows | 1 |
| Number of Pins | 40 |
| Pitch | 2.54mm |
| Mounting Type | Through-Hole (DIP) |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance | ≥1000MΩ |
| Length | 51mm |
| Width | 2mm |
| Height | 7mm |
| Weight (each) | Approx. 1g |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 x 8 x 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Male Pin Header Single Row 2.54mm Pitch - Red
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Male Pin Header 2.54mm Pitch - Yellow in Bangladesh is BDT 15 You can buy the Male Pin Header 2.54mm Pitch - Yellow at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
