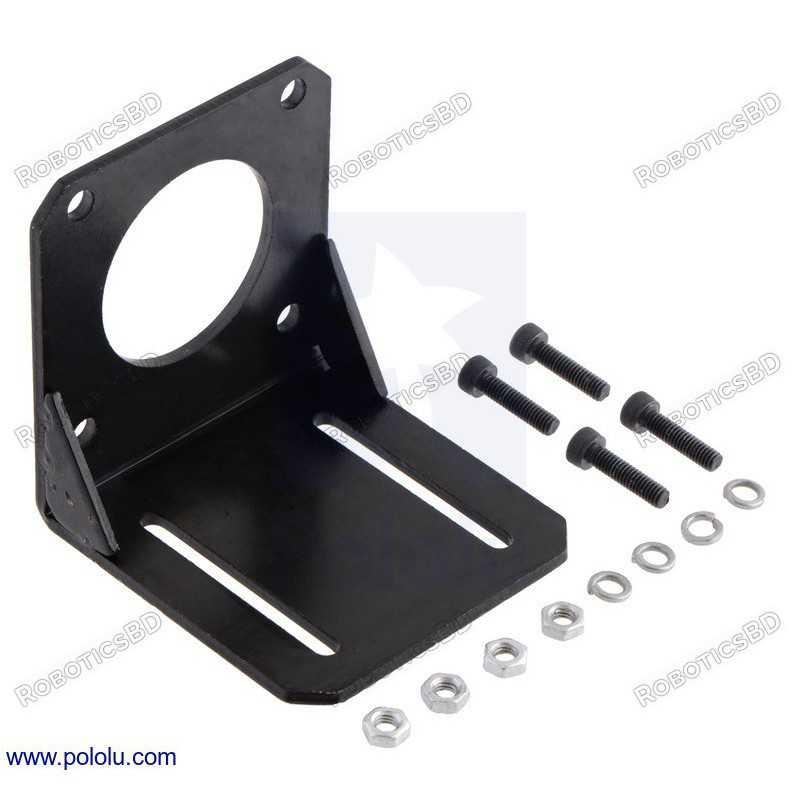

This Mounting Bracket is designed for NEMA23 Stepper Motor to mount it on the application firmly and securely. The Bracket for NEMA 23 Stepper Motor is made from high-quality Hardened Mild Steel. RoboticsBD
The Mounting Bracket is designed with one thing in mind, boosting the speed of our customer’s design by avoiding regular searches for quality mechanical products at an affordable price.
The use of MS in this bracket gives them good strength and makes them sturdy. Hence this bracket is ready to hold and take the load of your Stepper Motor. RoboticsBD
Bracket for NEMA 23 Stepper Motor fits firmly and accurately onto the NEMA23 Stepper Motor. The bracket has several other holes so that the motor can be fit in the way a user wants it to. So the use of this bracket will give you flexibility and modularity in design. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Package includes only a bracket and accessories set. If you want a NEMA23 Motor, then purchase it separately from RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Motor Type | NEMA23 |
| Material | Mild Steel |
| Length (mm) | 50 |
| Width (mm) | 62 |
| Height (mm) | 64 |
| Weight (gm) | 117 |
| Motor Mounting Hole Dia. (mm) | 5 |
| Shipment Weight | 0.13 kg |
| Shipment Dimensions | 7 × 8 × 8 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Steel L-Bracket for NEMA 23 Stepper Motors.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Steel L-Bracket for NEMA 23 Stepper Motors in Bangladesh is BDT 699 You can buy the Steel L-Bracket for NEMA 23 Stepper Motors at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
