If you are wandering to navigate the distance with a drone then this GPS Module is needed for you. GPS drones are equipped with a GPS module that allows them to know their location relative to a network of orbiting satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.

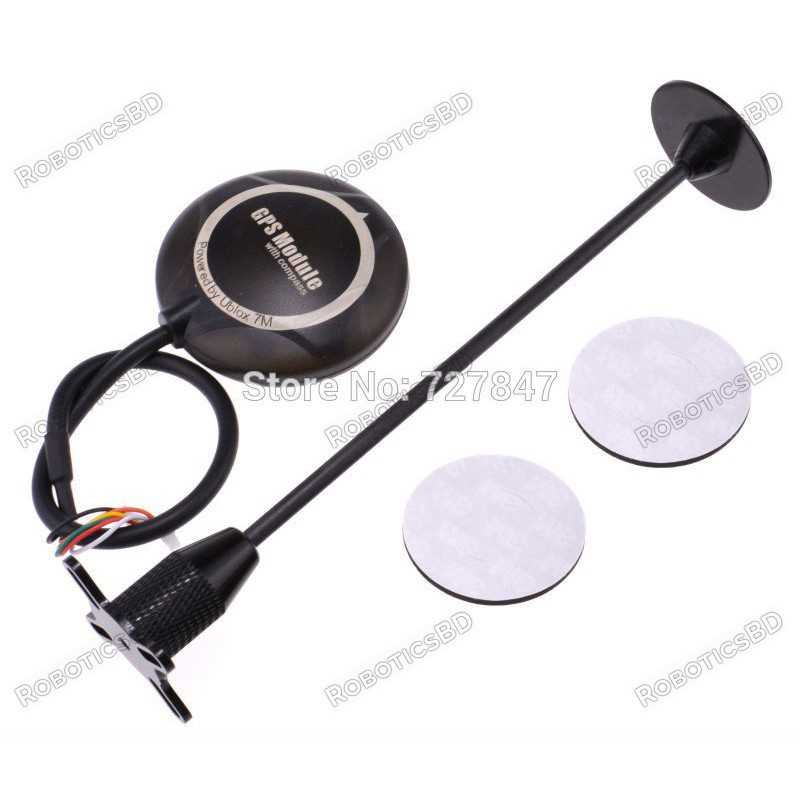

Neo 7M GPS module that includes an HMC5883L digital compass. The new NEO 7 series is a high sensitivity, low-power GPS module that has 56 channels and outputs precise position updates at 10Hz. This GPS module also comes with a molded plastic case which keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter.
This Neo 7M GPS module uses an active circuitry ceramic patch antenna to provide an excellent GPS signal which outperforms the older Neo 6 series modules. This Neo 7 module also includes a rechargeable backup battery to allow for HOT starts and also includes an I²C EEPROM to store the configuration settings. Out of the box this GPS module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems. This GPS module includes two cables, a 6pin connector for the GPS module, and a 4 pin connector for the i2c compass. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | Ublox NEO 7M |
| UBLOX NEO-7M Receiver Type | 56 Channels Galileo E1B/C1 GPS L1C/A QZSS L1C/A SBAS L1C/A |
| UBLOX NEO-7M Receiver Frequency | L1 [1575.42MHz] |
| UBLOX NEO-7M Input Supply Voltage (VDC) | 3.5 ~ 5.5 |
| UBLOX NEO-7M Main Chip | U-BLOX NEO-7M |
| UBLOX NEO-7MSensitivity (dBm) | -155 -160 Cold Start (without aiding): -147 dBm Tracking & Navigation: -161 dBm |
| UBLOX NEO-7M Position Accuracy (Meter) | 2 2.5 |
| UBLOX NEO-7M Acceleration (g) | <4 |
| UBLOX NEO-7M Navigation Update Rate | 5Hz |
| UBLOX NEO-7M Operating Temperature Range (°C) | -24 to 84 |
| UBLOX NEO-7M Tracking Sensitivity (dBm) | -161 dBm |
| UBLOX NEO-7M Co-Ordinate System | WGS-84 |
| UBLOX NEO-7M Capture Time | 0.1s Average |
| UBLOX NEO-7M Avg Cold Start Time (s) | 38 |
| UBLOX NEO-7M Warm Start Time (s) | 35 |
| UBLOX NEO-7M Boot Time | 1S |
| UBLOX NEO-7M Maximum Altitude (m) | 18000 |
| UBLOX NEO-7M Maximum Speed | 515 m/s |
| UBLOX NEO-7M Dimensions (mm) LxWxH | 60 x 11.5 (DxH) |
| UBLOX NEO-7M Weight (gm) | 26 |
| UBLOX NEO-7M Cable Length (cm) | 20 |
| Compass Stand Holder Material | Aluminium |
| Compass Stand Holder Color | Black |
| Compass Stand Holder GPS Plate Diameter | 40 mm. |
| Compass Stand Holder Base Plate Diameter | 35 mm |
| Compass Stand Holder Weight(gm) | 20 |
| Compass Stand Holder Height | 14 cm. |
| Compass Stand Holder Mounting Hole Spacing: | 16-35mm |
| Compass Stand Holder Mounting Rod Diameter: | Â 4mm |
| Shipment Weight | 0.030 kg |
| Shipment Dimensions | 18 × 18 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Neo 7M GPS module.
1 x Compass Stand Holder for APM ArduPilot Mega 2.6 Pixhawk Flight Control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of UBLOX NEO-7M NEO 7M GPS w/ Compass Stand Holder for APM ArduPilot Mega 2.6 Pixhawk Flight Control in Bangladesh is BDT 2,450 You can buy the UBLOX NEO-7M NEO 7M GPS w/ Compass Stand Holder for APM ArduPilot Mega 2.6 Pixhawk Flight Control at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
