Product Description:

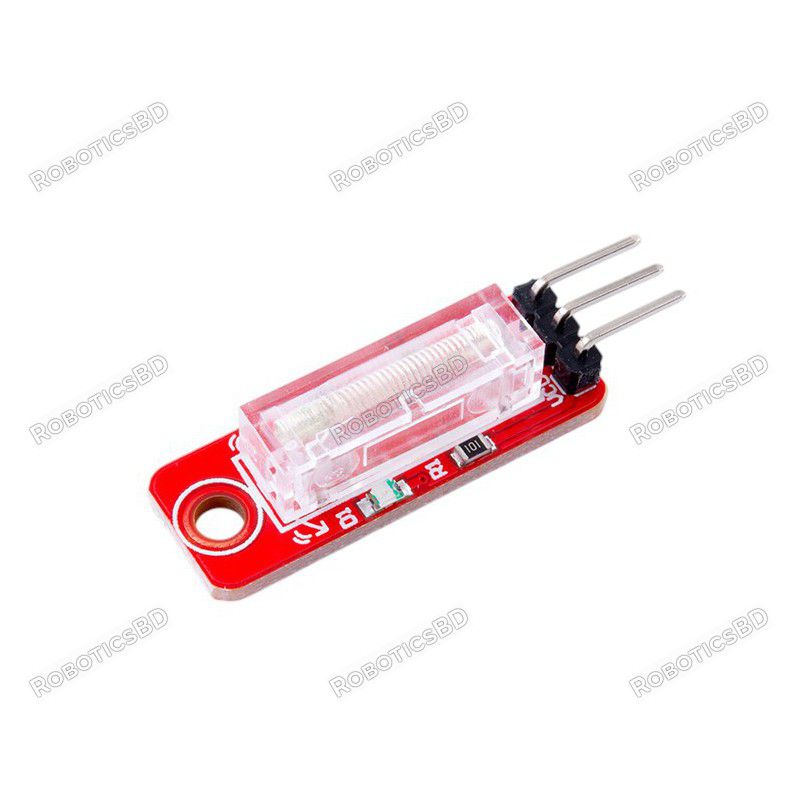

The Shake Switch Module is a simple and compact motion detection sensor that responds to directional shaking or vibration. Designed to output a high signal when activated, this module is ideal for basic motion-triggered projects such as alarms, interactive electronics, or energy-saving systems. It operates reliably on 3.3V to 5V, making it compatible with most microcontrollers like Arduino, ESP32, and Raspberry Pi.
This module detects shake or tilt in one direction and responds with a digital HIGH signal, making it easy to integrate into your digital input system without the need for complex coding or analog readings.
Key Features:
Detects directional shake or vibration
Digital high/low output for easy microcontroller interface
Operates at low voltage (3.3V–5V)
Simple to use and integrate
Compact and lightweight form factor
Technical Specifications:
Operating Voltage: 3.3V–5V
Output Type: Digital (HIGH when shake detected)
Detection Type: Directional shake (left/right)
Module Dimensions: 28.5 × 10 × 7.2 mm (excluding pin header)
How to Use:
Connect VCC and GND to your microcontroller's power supply.
Connect the output (D0) pin to a digital input pin.
Monitor the output signal: HIGH indicates a shake event; LOW indicates no movement.
Use in projects that require basic motion detection without the complexity of accelerometers.
Applications:
Anti-theft alarms
Interactive toys and devices
Vibration-activated lighting or sound
DIY electronics learning kits
Motion-sensing controls in embedded systems
Package Includes:
1 × Shake Sensor Module
Why Choose This Product?
This shake switch module offers a cost-effective, plug-and-play solution for detecting basic vibration or directional motion. It’s perfect for beginner and intermediate electronics projects where quick and simple movement detection is needed.
Add simple motion detection to your project with this compact and efficient Shake Sensor Module—order now and get started instantly!
The latest price of Shake Sensor Module Vibration/Movement Detection Switch in Bangladesh is BDT 180 You can buy the Shake Sensor Module Vibration/Movement Detection Switch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
