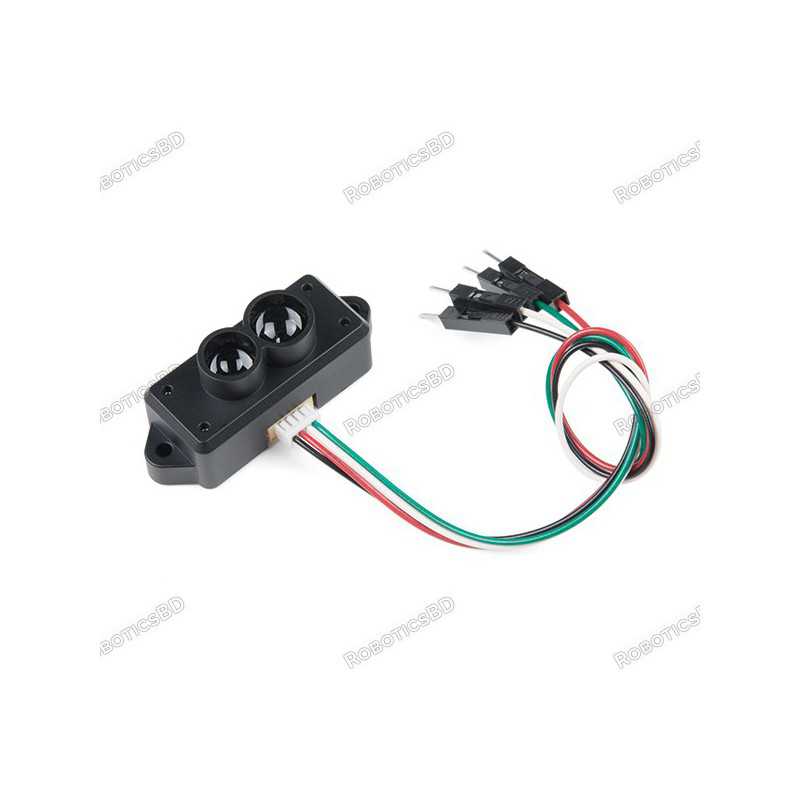

The TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. It has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era. RoboticsBD
TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment. Main Characteristics of TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) are, this product is based on TOF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Range | 0.1m~12m@90%Reflectivity |
| Accuracy | ±6cm@（0.1-6m) ±1%@（6m-12m） |
| Distance Resolution(cm) | 1 |
| Frame Rate(Hz) | 100 |
| Ambient light immunity | 70Klux |
| Operating Temperature(℃) | 0℃~60℃ |
| FOV | 2° |
| Supply Voltage(V) | 5V±0.1V |
| Average current(mA) | ≤140mA |
| Power Consumption(W) | ≤0.7W |
| Peak current(mA) | 200 |
| Communication Interface | UART / I2C |
| Cable Length(cm) | 10 |
| Dimension in mm(L*W*H) | 42*15*16 |
| Weight(g) | 5g±0.3g |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 5 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x TFMini-S Micro LiDAR Distance Sensor
1 x Cable
1 x QC card.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of TFMini S - Micro LiDAR Module in Bangladesh is BDT 8,490 You can buy the TFMini S - Micro LiDAR Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
