This flex sensor is a clone china product. It has little resistance variations, which can be mapped using Arduino. Please review our observations before making your purchase.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

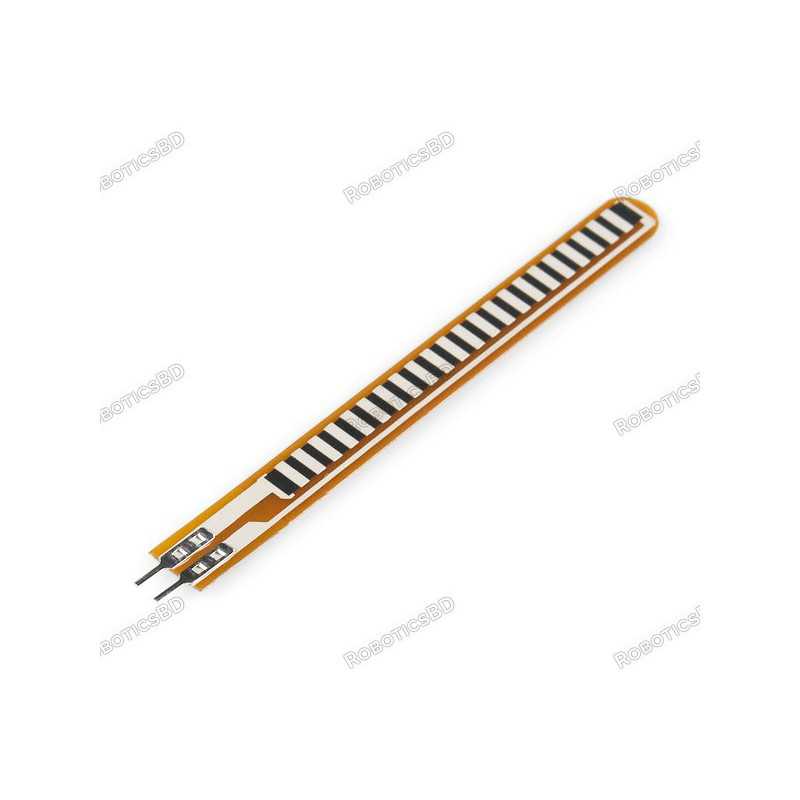

A simple Flex Sensor 2.2″ – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly. Applications in – Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Flex length(mm) | 2.2" (56) |
| Total Length (cm) | 7 |
| Life Cycle | >1 million |
| Height | 0.43mm (0.017") |
| Flat Resistance | 7.4K Ohms ±30% |
| Bend Resistance | minimum 8.4K Ohms ±30% (@ 180° pinch bend) |
| Power Rating | 0.5 Watts continuous; 1 Watt Peak. |
| Shipment Weight | 0.002 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
In our testing, we found the sensor has a resistance of 7.7 kΩ, increasing to 8.4 kΩ when bent. While it can be mapped in Arduino coding, it is best suited for applications requiring low sensitivity settings and installations.
.jpg)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Flex Sensor 2.2" Clone
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Flex Sensor 2.2" China in Bangladesh is BDT 1,150 You can buy the Flex Sensor 2.2" China at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
