Designed for use as an endstop for 3D printers but it can be used for other IR beam interrupter purposes as well.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

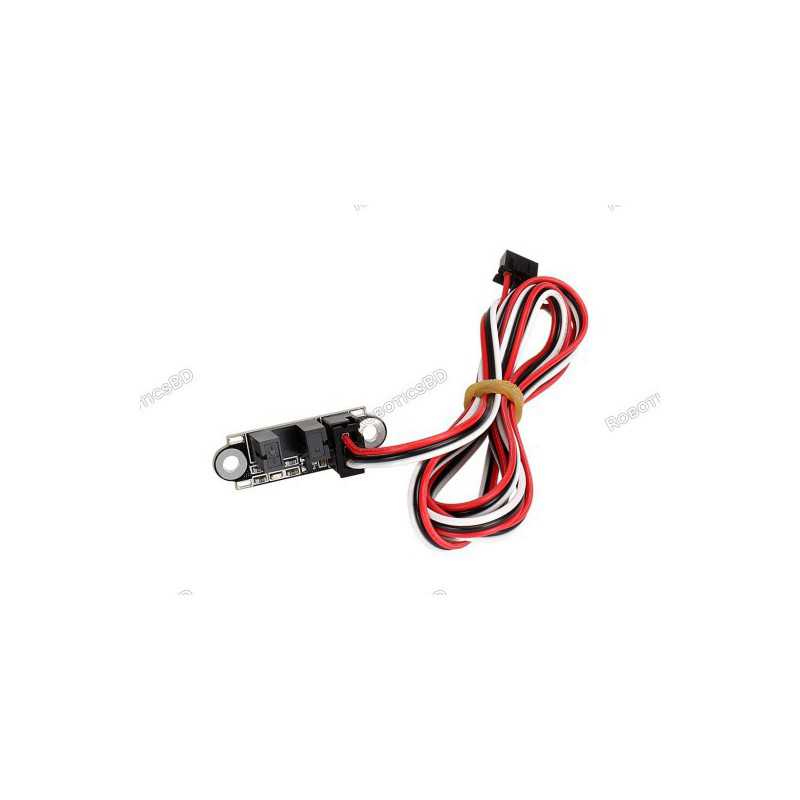

This infrared sensor is designed for use as an endstop for 3D printers but it can be used for other IR beam interrupter purposes as well.
The module was designed to detect travel limits for 3D printers, but they will work for many beam-break applications such for a security system or counting revolutions of a spoked wheel that passes through the uprights.
This module has an IR transmitter and receiver pair that face each other across a U-shaped housing. An object moving through the uprights breaks the IR beam.
The output is normally held LOW. When the beam is broken, the output goes HIGH and a green LED on the module illuminates.
The module uses a 3-pin 2.54mm JST style connector. The other end of the cable terminates in the same kind of connector and is compatible with a standard 2.54mm male headers..
Note that the cable is not color coded. Red does not necessarily go to Vcc, so be sure to follow the pin-out of the connector labeled on the back of the board as shown below
1×3 Connector
The module has 2 large mounting holes.
Build quality is good on these modules but there are a couple of things to note to make sure it is right for your application.
The latest price of Optical Endstop Switch with 1m Cable in Bangladesh is BDT 350 You can buy the Optical Endstop Switch with 1m Cable at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
