Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

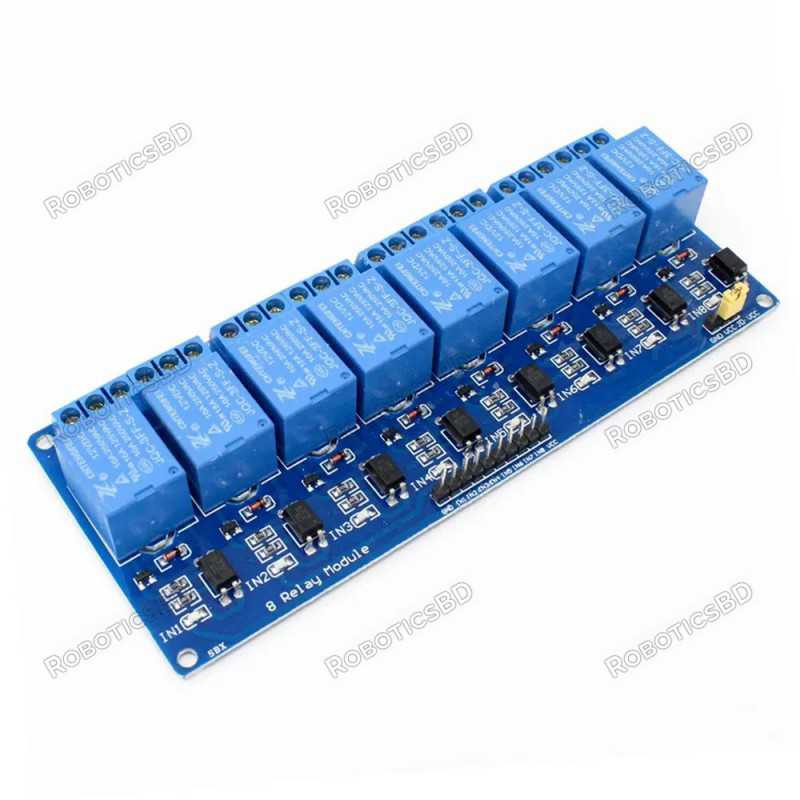

This 8 Channel 12V Relay Module with Optocoupler meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.
The triggering of 8 Channel Relay Module is reliable, more stable. The double FR4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.
The inputs of the 8 Channel 12V Relay Module are isolated to protect any delicate control circuitry.
A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.
The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Channel | 8 |
| Operating Voltage | DC 12V |
| Trigger Voltage | DC 12V |
| Switching Voltage | AC 250V 10A |
| Switching Voltage | DC 30V 10A |
| PCB hole diameter | 3.1mm |
| PCB hole pitch distance | 132mm (x-pitch), 50.5mm (y-pitch) |
| Length | 138mm |
| Width | 57mm |
| Height | 17mm |
| Weight | 110 gm |
| Shipment Weight | 0.125 kg |
| Shipment Dimensions | 14 × 7 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x 8 Channel 12V Relay Module
The latest price of 8 Channel 12V Relay Module in Bangladesh is BDT 710 You can buy the 8 Channel 12V Relay Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
