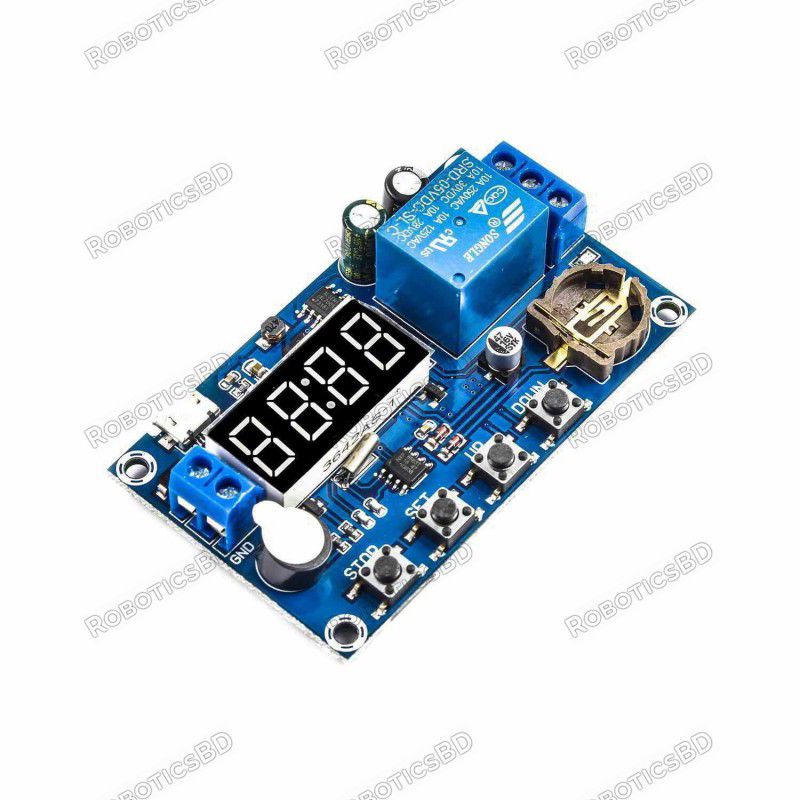

The 5-60V Real Time Delay Timer Relay Module is a versatile and intelligent timing control device designed for complex automation tasks. Equipped with a bright LED display, this module offers a wide voltage input range from 5V to 60V, multiple customizable time periods, and advanced features such as a buzzer alarm, multiple output modes, and sleep mode for power-saving applications.
Battery is not Included
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 5-60V Real Time Delay Timer Relay Module is a versatile and intelligent timing control device designed for complex automation tasks. Equipped with a bright LED display, this module offers a wide voltage input range from 5V to 60V, multiple customizable time periods, and advanced features such as a buzzer alarm, multiple output modes, and sleep mode for power-saving applications.
It supports up to five independent time periods (PE-1 to PE-5), allowing flexible and precise scheduling for relay operation. With adjustable ON/OFF delays, date-based control, and flexible mode selection (P-1 to P-5), this module can handle a wide range of timing and automation needs across industrial, DIY, and smart control projects.
Wide Voltage Range: Operates from 5V to 60V DC
Multiple Time Periods: Set up to five independent time periods (PE-1 to PE-5)
Multiple Function Modes:
P-1: Daily ON/OFF timing
P-2: One-day ON/OFF timing
P-3: Specific date ON/OFF timing
P-4: Date range daily timing
P-5: Specific start and end dates and times
Precise Timing: Adjustable between seconds and minutes with 0.1-second resolution
Buzzer Alarm Function: Audible alert with manual stop
Flexible Output Options: Continuous relay operation (OUT1) or 1-second pulse output (OUT2)
Emergency Stop Function: One-button ON/OFF relay control
Sleep Mode: LED display auto-off option for energy saving (CP mode)
Memory Function: Settings retained even after power-off
User-Friendly Interface: Simple button setup for time, mode, and output configuration
| Feature | Specification |
|---|---|
| Input Voltage | 5V to 60V DC |
| Display Type | LED Digital Display |
| Time Periods | PE-1 to PE-5 (5 programmable periods) |
| Output Type | 1-Channel Relay |
| Output Modes | Relay ON/OFF control or 1S pulse output |
| Alarm Function | Optional buzzer alert (enable/disable) |
| Emergency Stop | Manual STOP button for quick relay control |
| Sleep Mode | CP (Display Off) / Od (Display On) selectable |
| Time Setting Resolution | 0.1 seconds to minutes |
| Operating Temperature | -20°C to 85°C |
OPE (Open): Relay closing/start time
CLE (Close): Relay opening/stop time
Date and Time Settings: Fully customizable including year, month, day, hour, and minute
Bell Mode: Enable/disable buzzer after each relay operation
Relay Enable Mode: Manual ON/OFF control at any time for emergency or setup
Flexible Scheduling: Any period can independently have its own mode and behavior
Note: For correct operation, ensure the stop time/date (CLE) is greater than the start time/date (OPE).
Lighting control and automation
Motor and pump operation scheduling
DIY electronics and smart home projects
Industrial process automation
Scheduled power-on/off systems
Agricultural watering and environmental control systems
1 x 5-60V Real Time Delay Timer Relay Module with LED Display
Ultra-flexible scheduling with 5 programmable time periods
Wide voltage compatibility for various systems
Advanced safety features like buzzer alarms and manual emergency stop
Memory retention to prevent loss of settings after power interruption
Easy to configure with clear LED display and intuitive controls
Simplify your automation tasks with the powerful and user-friendly 5-60V Real Time Delay Timer Relay Module.
Order now and bring reliable, flexible, and precise timing control to your next project!
The latest price of 5-60V Real Time Delay Timer Relay Module with LED Display in Bangladesh is BDT 650 You can buy the 5-60V Real Time Delay Timer Relay Module with LED Display at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
