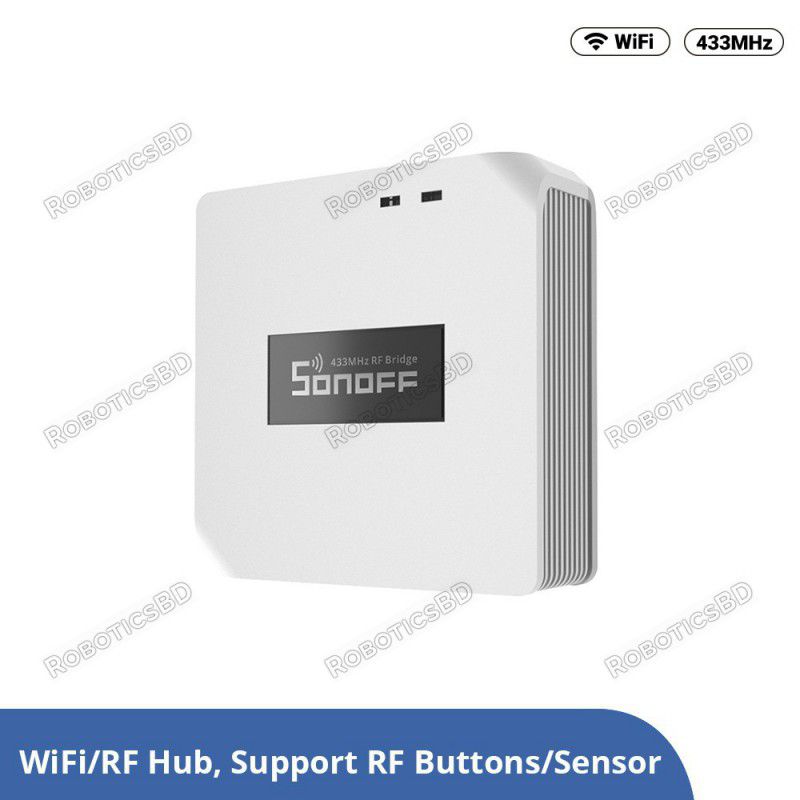

The SONOFF RF BridgeR2 433 brings RF and Wi-Fi technologies together, allowing your traditional 433MHz RF devices to become part of your modern smart home ecosystem. With this hub, you can control RF switches, sensors, remotes, and alarms via the eWeLink app from anywhere in the world—creating smart scenes, security alerts, and automated actions.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:
The SONOFF RF BridgeR2 acts as a powerful gateway between 433.92MHz RF remote-controlled devices and Wi-Fi networks, converting signals so you can control legacy RF hardware from your smartphone. Whether you're managing lights, motion sensors, or door alarms, this bridge enables flexible and centralized control for up to 64 RF devices. It’s perfect for users looking to upgrade their non-Wi-Fi equipment into a connected smart home.
Key Features:
Dual Protocol Support: Bridges 433MHz RF devices and Wi-Fi for expanded connectivity.
Broad Compatibility: Works with SONOFF RF devices like PIR3-RF motion sensors, DW2-RF door/window sensors, and most fixed-code 433.92MHz remotes (PT2260, PT2262, PT2264, EV1527).
Smart Scene Triggers: Use RF sensors to trigger actions (e.g., light turns on when a door opens).
RF Device Management: Control and organize up to 64 RF buttons or 16 RF remote controls from your phone.
Mobile Notifications: Set alarms and receive push notifications when RF sensors are triggered (for owner account only).
Timer Support: Schedule automatic on/off actions with countdown, loop, or scheduled timers.
Specifications:
Model: SONOFF RF BridgeR2
RF Frequency: 433.92MHz (Fixed code only)
Compatible Code Types: PT2260, PT2262, PT2264, EV1527
Max RF Devices Supported: 16 remotes / 64 buttons
Network Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
App Support: eWeLink (Android & iOS)
Power Supply: USB 5V (microUSB)
Supported Platforms: SONOFF ecosystem, eWeLink app
Smart Scene Integration: Yes
Timer Functions: Countdown, Loop, Scheduled (via app)
Applications:
Smart lighting and appliance control using RF remotes
Home security with door/window sensors and motion detectors
DIY automation scenes with legacy 433MHz RF equipment
Alarm notification when RF-based security devices are triggered
Package Includes:
1 x SONOFF RF BridgeR2 433 Smart Hub
(RF remotes, sensors, and other devices not included)
Why Choose SONOFF RF BridgeR2?
If you have a collection of RF-based devices and want to unify them under one smart ecosystem, the SONOFF RF BridgeR2 is a must-have. It transforms traditional RF controls into Wi-Fi-controlled smart devices—letting you automate, schedule, and monitor your home like never before.
Unlock the full potential of your smart home—connect, control, and automate with the SONOFF RF BridgeR2 today!
The latest price of SONOFF RF BridgeR2 433 Smart Hub in Bangladesh is BDT 2,850 You can buy the SONOFF RF BridgeR2 433 Smart Hub at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
