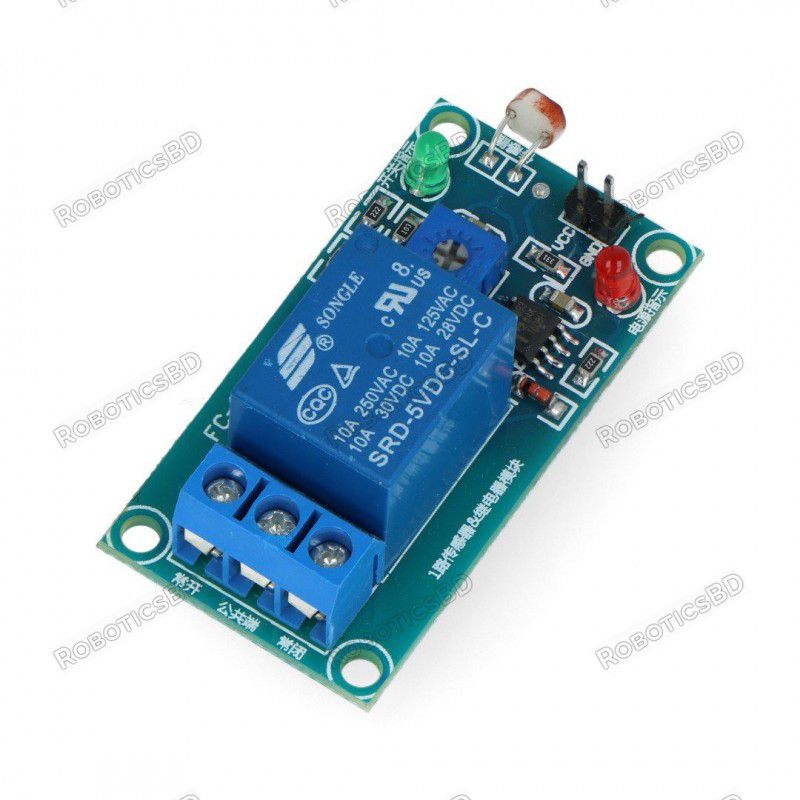

The FC-13 Relay Module with Photoresistor offers an intelligent solution for controlling electrical loads based on ambient light intensity. Featuring a 5V coil SRD-5VDC-SL-C relay, this module can drive actuators or devices consuming up to 10A at 250VAC or 30VDC.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The FC-13 Relay Module with Photoresistor offers an intelligent solution for controlling electrical loads based on ambient light intensity. Featuring a 5V coil SRD-5VDC-SL-C relay, this module can drive actuators or devices consuming up to 10A at 250VAC or 30VDC.
Equipped with a built-in photoresistor sensor and an adjustable sensitivity potentiometer, the module detects changes in light levels and triggers the relay accordingly. Designed with both goldpin header and screw terminals, it offers flexible and secure wiring options for easy integration into automation, lighting, and smart home projects.
Light-Responsive Switching: Controls loads based on ambient light intensity
Adjustable Sensitivity: Fine-tune the light level that triggers the relay with the built-in potentiometer
High Load Capacity: Supports up to 10A switching at 250VAC or 30VDC (depending on load type)
5V Coil Operation: Compatible with standard 5V logic systems
Flexible Connections: Standard 2.54mm goldpin header and screw terminals for easy wiring
Compact Board Size: Easy to mount using the provided 3mm mounting holes
| Feature | Specification |
|---|---|
| Supply Voltage (VCC) | 5V DC |
| Relay Model | SRD-5VDC-SL-C |
| Coil Voltage | 5V DC |
| Maximum Switching Voltage | 250VAC / 30VDC |
| Maximum Switching Current | 10A |
| Light Detection | Photoresistor with adjustable sensitivity |
| Board Dimensions | 50mm x 26mm |
| Mounting Hole Diameter | 3mm |
Note:
Maximum contact voltage and current ratings depend on load type. Refer to relay documentation (Tab. 7 Contact Rating) for detailed information.
VCC: Connect 5V DC power supply
GND: Connect ground
Relay Output Terminals:
NO (Normally Open)
COM (Common)
NC (Normally Closed)
Use the onboard potentiometer to adjust the threshold of light intensity at which the relay will switch.
Automatic street lighting control
Garden or landscape lighting automation
Security and alarm systems based on light detection
DIY home automation projects
Energy-saving lighting solutions
Light-activated switching systems
1 x Relay Module 1 Channel with Photoresistor FC-13 – 5V
Easy-to-use automatic control based on real-time light sensing
High reliability for home, industrial, or DIY projects
Flexible installation options with both screw terminals and pin headers
Compact, durable design ready for integration into your systems
Automate your lighting and devices easily with the smart and flexible FC-13 1-Channel Relay Module with Photoresistor.
Order now and bring intelligent light-based control to your next project!
The latest price of Relay Module 1 Channel with Photoresistor FC-13 – 10A / 240VAC Contacts – 5V Coil in Bangladesh is BDT 350 You can buy the Relay Module 1 Channel with Photoresistor FC-13 – 10A / 240VAC Contacts – 5V Coil at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
