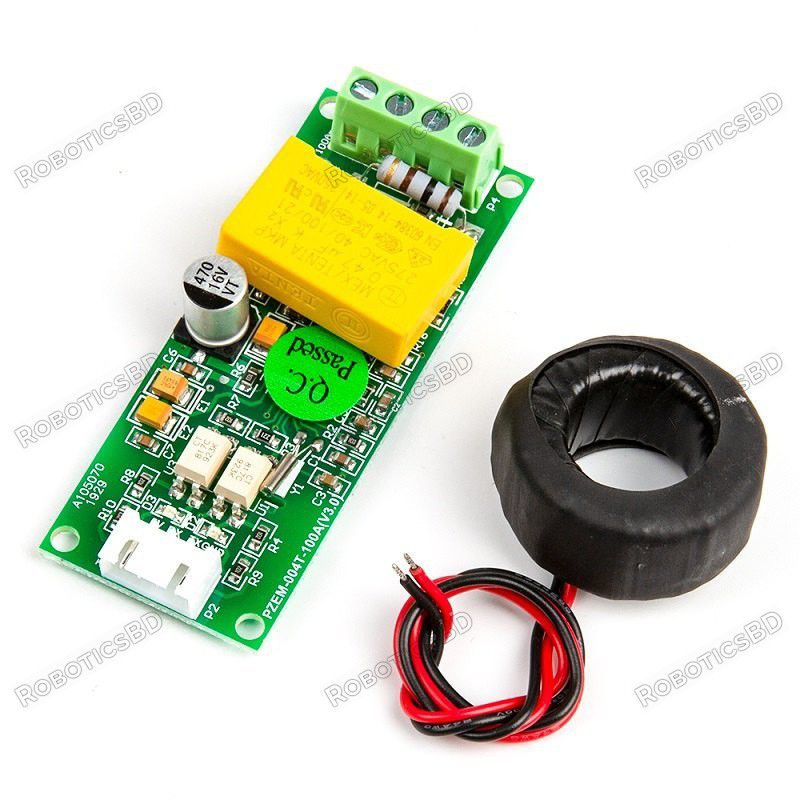

This PZEM-004T Multi-function AC Power Monitor is very popular in electrical consumption measurement projects. It is capable of measuring four interrelated electrical variables as voltage, current, power, and energy.
This tiny PZEM-004T circuit is great for measuring AC (RMS) voltage, current, and power (single-phase). The unit easily interfaces with Arduino and other hardware using the code library.
Simply power the board with a power supply (or you can use the AC source you are measuring) and connect the circular sensor to the board. Run the wire through the circular sensor and you`re ready to start measuring the voltage, current, and power. The circuit also comes with a TTL to USB adapter wire for easy connection to a computer or microcontroller.
This module features a TTL serial data communication interface, you can read and set the relevant parameters via the serial port; but if you want to communicate with a device which has USB or RS232 (such as a computer), you need to be equipped with different TTL pinboard (USB communication needs to be equipped with TTL to USB pinboard; RS232 communication needs to be equipped with TTL to RS232 pinboard).
The PZEM-004T features a built-in button on the panel, used to make the electricity clear function.
Note: Package does not include a USB cable
1 x PZEM-004T Multi-function AC Power Monitor Module
1 x CT coil
The latest price of PZEM-004T AC Multi-function Electric Energy Metering Power Monitor with Closed CT in Bangladesh is BDT 1,345 You can buy the PZEM-004T AC Multi-function Electric Energy Metering Power Monitor with Closed CT at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
