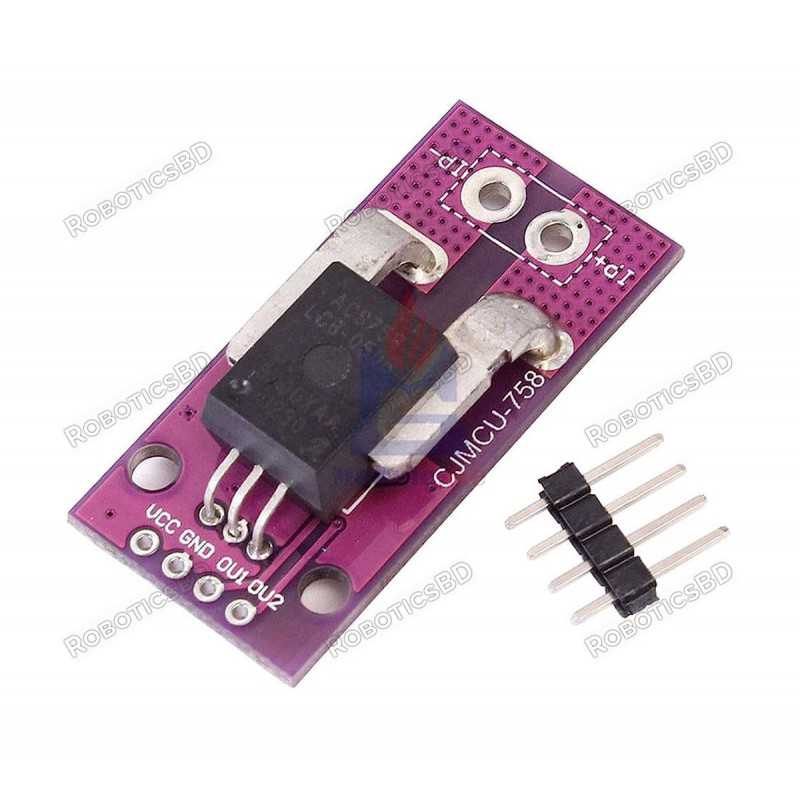

The CJMCU-758 ACS758LCB-050B-PFF-T Hall Current Sensor Module provides precise and stable current measurement for a variety of applications. Utilizing the Allegro ACS758LCB-050B Hall-effect linear current sensor IC, this module is capable of detecting currents up to ±50A with a linearity of 40mV/A. Its compact size, robust design, and wide operating temperature range make it suitable for industrial, automotive, and DIY projects. With a factory-trimmed offset voltage and minimal magnetic hysteresis, it ensures consistent performance even in demanding environments. This module is compatible with 3V-5V systems, making it ideal for integration with microcontrollers. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model Type | Hall Current Sensor |
| Detection Range | ±50A |
| Linearity | 40mV/A |
| Operating Voltage | 3V - 5V |
| Operating Current | 13.5mA |
| Output Current | 3mA |
| Bandwidth | Internal: 120 kHz |
| Operating Temperature (°C) | -40 to 150 |
| Storage Temperature (°C) | -65 to 165 |
| Module Dimensions | 37mm x 18mm |
| Module Weight | 8.8g |
| Shipment Weight | 0.01kg |
| Shipment Dimensions | 4 x 2 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x CJMCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of CJMCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module in Bangladesh is BDT 650 You can buy the CJMCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
