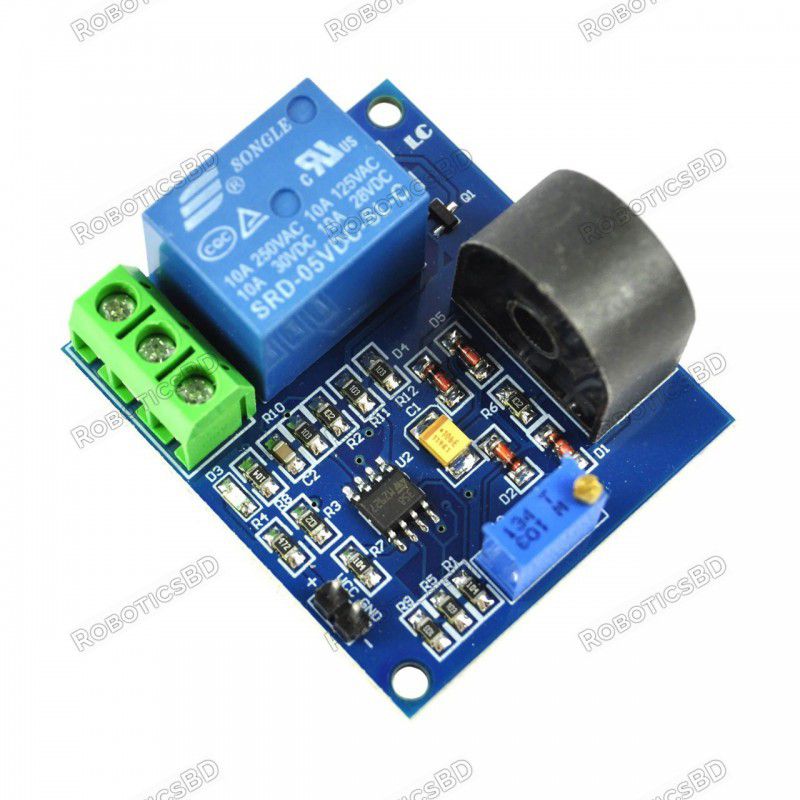

The 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module is an essential solution for safeguarding AC electrical systems against overcurrent faults. Designed for a wide frequency range and supporting currents up to 5A AC, this module delivers fast and reliable overcurrent detection, ensuring the safety and stability of industrial, commercial, and residential electrical systems.
Operating at 12V DC, this compact module is easy to integrate into existing circuits. With a maximum wire detection diameter of 5.2mm, it supports a wide variety of load types and wiring setups, offering effective protection in automation systems, motor drives, power distribution networks, and control panels.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module is an essential solution for safeguarding AC electrical systems against overcurrent faults. Designed for a wide frequency range and supporting currents up to 5A AC, this module delivers fast and reliable overcurrent detection, ensuring the safety and stability of industrial, commercial, and residential electrical systems.
Operating at 12V DC, this compact module is easy to integrate into existing circuits. With a maximum wire detection diameter of 5.2mm, it supports a wide variety of load types and wiring setups, offering effective protection in automation systems, motor drives, power distribution networks, and control panels.
Wide frequency support: Operates reliably from 20Hz to 400Hz
Current sensing range: Capable of detecting 0 to 5A AC
Overcurrent protection: Quickly detects and responds to abnormal current conditions
Compact and efficient design: Easy integration into diverse electrical systems
Supports voltage current detection: AC 5V to 22V
Wide compatibility: Suitable for motor protection, automation, and distribution boards
Operating Voltage: 12V DC
Current Detection Range: 0 to 5A AC
Frequency Range: 20Hz to 400Hz
Voltage Current Detection Range: AC 5V to 22V
Maximum Detection Wire Diameter: 5.2mm
Module Dimensions: 44mm x 38mm x 35mm
Connect a 12V DC power supply to the module.
Pass the AC wire to be monitored through the module's detection hole (maximum 5.2mm diameter).
Monitor the module’s output signal to detect overcurrent events and trigger necessary protective actions (such as circuit cutoff, alarms, or control signals).
Integrate the module’s output with relay circuits, controllers, or alarms as needed for automatic system responses.
Industrial automation systems
Motor overload protection
Power distribution and monitoring
Smart grid and energy management
Home and commercial building protection
Electrical panel safety systems
1 x 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module
Reliable overcurrent detection across a wide frequency range
Protects critical electrical systems from damage and failure
Compact and robust design for seamless system integration
Easy setup and maintenance for engineers and DIY users alike
Enhances the safety and longevity of motors, power supplies, and distribution networks
Protect your equipment and electrical systems with confidence using the 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module.
Order now to enhance your system’s safety and performance!
The latest price of 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module in Bangladesh is BDT 350 You can buy the 20-400Hz, 0-5A AC Overcurrent Protection Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
