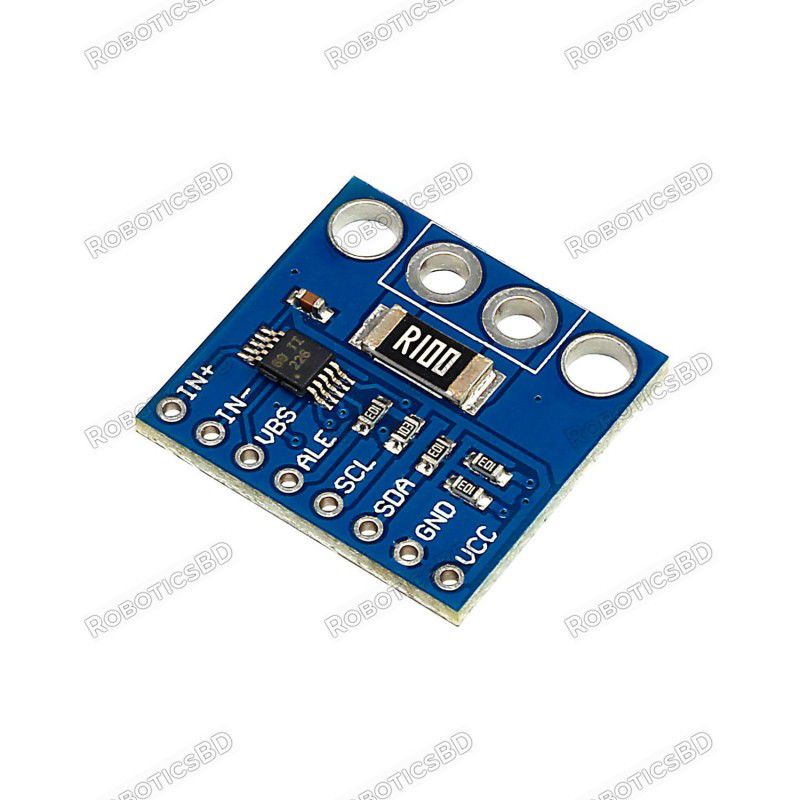

The INA226 Voltage Current Power Monitoring Module is a high-precision I²C-based sensor designed for real-time voltage, current, and power measurements in electronic circuits. With its high 16-bit ADC resolution, this module ensures accurate and reliable monitoring of power consumption, making it an essential tool for engineers, hobbyists, and professionals.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The INA226 Voltage Current Power Monitoring Module is a high-precision I²C-based sensor designed for real-time voltage, current, and power measurements in electronic circuits. With its high 16-bit ADC resolution, this module ensures accurate and reliable monitoring of power consumption, making it an essential tool for engineers, hobbyists, and professionals.
Whether you're working on battery management, energy-efficient designs, or power optimization projects, the INA226 module provides the precision and flexibility needed for a wide range of applications. It supports both high-side and low-side current sensing, making it versatile for different circuit configurations. With a wide input voltage range of 0V to 5V, this module is ideal for embedded systems, IoT applications, and power-sensitive projects.
✔ High-Precision Power Monitoring – Measures current, voltage, and power with 0.1% gain accuracy.
✔ Wide Input Voltage Range – Supports 0V to 36V for diverse applications.
✔ 16-Bit High-Resolution ADC – Provides accurate and stable measurements.
✔ I²C Communication Interface – Easily integrates with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.
✔ High-Side & Low-Side Sensing – Can monitor current on both sides of the load.
✔ Ultra-Low Offset Voltage – 10µV max, ensuring high sensitivity in small current measurements.
✔ Adjustable Alert Function – Configurable power threshold alerts for overcurrent or undervoltage protection.
✔ Low Power Consumption – Efficient power management suitable for battery-powered devices.
✔ Industrial-Grade Temperature Range – Operates between -40°C to 125°C, making it ideal for harsh environments.
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V - 5.5V |
| Common Mode Voltage | 0V to 36V (max) |
| ADC Resolution | 16-bit |
| Input Offset Voltage | 10µV (max) |
| Input Offset Drift | 0.02µV/°C (typical) |
| CMRR (Common Mode Rejection Ratio) | 126dB (min) |
| Bandwidth | 7KHz |
| Communication Interface | I²C (Address: 0x40 - 0x47) |
| I²C Clock Speed | 400kHz (max) |
| Special Features | Alert function, bi-directional sensing, low-side capability |
| Operating Temperature | -40°C to 125°C |
Connect the INA226 Module to a Microcontroller
Install Required Libraries
Read Data via I²C
Set Alerts for Overcurrent or Overvoltage
Analyze and Optimize Power Consumption
✔ Battery Management Systems – Monitor battery voltage and current consumption in electric vehicles (EVs), power banks, and solar energy systems.
✔ IoT & Embedded Systems – Helps optimize low-power devices and wireless sensor networks.
✔ Power Supply Monitoring – Ensures stable voltage and current in industrial automation and lab equipment.
✔ Energy Efficiency Analysis – Used in home automation to track power usage and prevent energy waste.
✔ Industrial Motor Control – Monitors current consumption in motors, pumps, and actuators.
✔ Arduino & Raspberry Pi Projects – Ideal for DIY electronics, robotics, and smart systems.
✔ Overcurrent Protection Systems – Automatically cuts off power in fault conditions to prevent damage.
✅ Highly Accurate (16-bit ADC & 0.1% Gain Error) – Ensures reliable power measurements.
✅ Flexible Voltage & Current Sensing – Works with high-side and low-side loads.
✅ I²C Communication for Easy Integration – Plug & play with microcontrollers.
✅ Adjustable Alerts for Safety & Protection – Prevents overvoltage and overcurrent damage.
✅ Compact & Efficient – Perfect for battery-powered and industrial applications.
The latest price of INA226 Voltage Current Power Monitoring Module in Bangladesh is BDT 350 You can buy the INA226 Voltage Current Power Monitoring Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
