This module uses a Local-clone chip.
However, for a Bluetooth module with a verified genuine CSR chip (HC-05), click here.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The HC-05 Bluetooth Module with Local CSR Chip is a cost-effective wireless communication solution designed for beginner to intermediate projects. Supporting both Master and Slave modes, this module is ideal for wireless serial data exchange between microcontrollers and Bluetooth-enabled devices like PCs or smartphones. Though this version uses a clone/local CSR chip, making it slightly less stable than the original, it still functions reliably for standard Arduino and embedded applications.
It operates on Bluetooth v2.0 + EDR protocol, using GFSK modulation, and provides a communication range of up to 10 meters. It’s perfect for budget-conscious hobbyists looking to integrate Bluetooth into their microcontroller projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Supports both Master and Slave Modes for flexible usage.
Bluetooth v2.0 + EDR, suitable for wireless serial data communication.
Clone CSR chip – affordable but might be less stable than the original.
UART serial communication; default baud rate: 9600 bps.
Class 2 emission, range up to 10 meters in open space.
LED indicators for power and Bluetooth pairing status.
Compact and breadboard-friendly design (43mm x 16.5mm).
Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other MCUs.
Low power consumption (30mA pairing, 8mA during communication).
Great for DIY automation, data logging, and wireless control systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Arduino Wireless Control (e.g., robot car, smart lights).
Serial Data Logging with Bluetooth to smartphone or PC.
Home Automation Projects with Bluetooth interface.
IoT Prototyping on a budget.
Wireless communication between two microcontrollers.
Bluetooth remote control in robotics and automation.
Educational setups to teach UART and wireless basics.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | HC-05 (Local CSR Chip) |
| Chip Type | Clone/Local CSR |
| Bluetooth Version | v2.0 + EDR |
| Modes | Master / Slave |
| Frequency | 2.4GHz ISM Band |
| Modulation | GFSK |
| Emission Power | ≤4dBm, Class 2 |
| Sensitivity | ≤-84dBm at 0.1% BER |
| Voltage Range | 3.6V – 6V DC |
| Default Baud Rate | 9600 bps |
| Operating Current | 30mA (pairing), 8mA (active) |
| Communication Interface | UART (TXD, RXD) |
| Max Range | 10 meters (open space) |
| Temperature Range | -20°C to +75°C |
| Dimensions (LxWxH) | 43mm x 16.5mm x 7mm |
| Weight | 5g |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

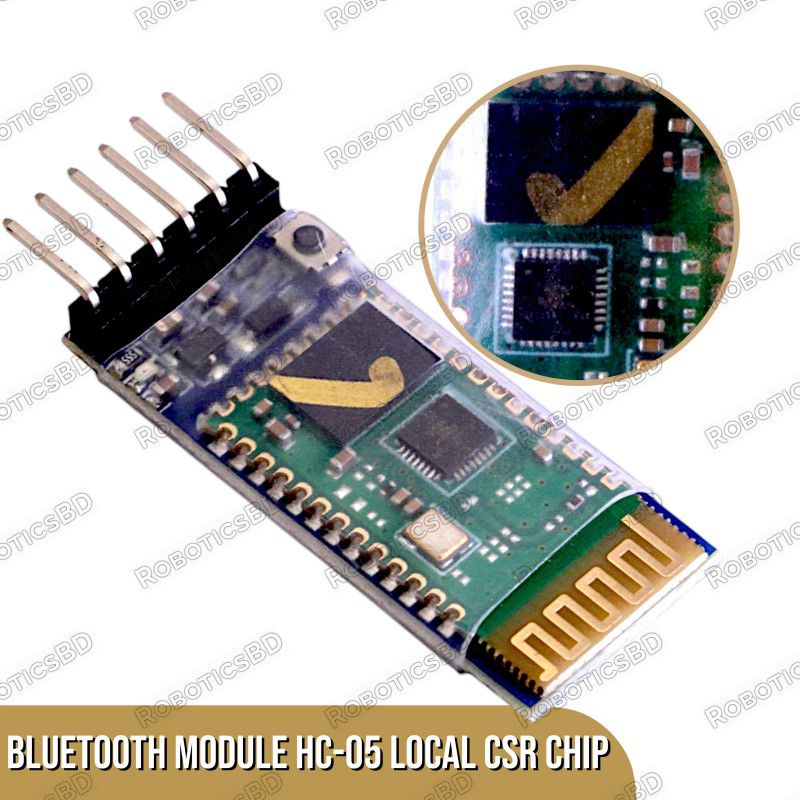

One of the easiest ways to spot the difference between an original HC-05 module and a clone lies in the Bluetooth chip size and quality.
The original HC-05 uses a genuine CSR chip, which is slightly larger and provides more reliable Bluetooth communication, better range, and full AT command support.
Clone versions often come with smaller, unbranded chips, even falsely labeled as "CSR". These clones may lack proper protocol support, have limited AT commands, and exhibit unstable or slow connections.
Backed by a reliable CSR chipset
Better signal stability and communication range
Compact and easy to integrate into projects
Ideal for Arduino and microcontroller applications
Full support for configuration and firmware upgrades
| Feature | CSR Chip (Genuine) | Clone CSR Chip (Chinese or non-genuine) |
| Chipset | Original CSR (Cambridge Silicon Radio) UK chip | Copy or alternative low-cost chipset |
| Stability | High – better signal strength, less dropout | Lower – occasional pairing issues or dropouts |
| AT Command Reliability | Fully supported and well-documented | Sometimes inconsistent AT command behavior |
| Firmware Upgradability | Often upgradeable | Often locked or unreliable firmware |
| Price | Slightly higher | Cheaper |
| Module Name | HC Type | Chip Quality | Key Notes |
| 1. HC-05 CSR Chip | HC-05 | Generic CSR | May be reliable if true CSR, but unverified origin |
| 2. HC-05 Genuine CSR Chip | HC-05 | Genuine | Best quality among HC-05, fully supports Master/Slave |
| 3. HC-05 Clone CSR Chip | HC-05 | Clone | Might face instability, but works for basic use |
| 4. HC-06 CSR Chip | HC-06 | Generic CSR | Slave only, check CSR chip authenticity |
| 5. HC-06 Genuine CSR Chip | HC-06 | Genuine | Best among HC-06, reliable slave communication |
| 6. HC-06 Clone CSR Chip | HC-06 | Clone | Basic functionality, lower reliability |
For advanced control (Master/Slave, Arduino to Arduino):
→ HC-05 Genuine CSR Chip
For simple, reliable communication (e.g., Arduino to Android):
→ HC-06 Genuine CSR Chip
For budget or experiments:
→ Clone modules are fine, but test each thoroughly.
1 x Arduino Bluetooth Module HC-05 Local CSR Chip
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Arduino Bluetooth Module HC-05 Local Chip in Bangladesh is BDT 349 You can buy the Arduino Bluetooth Module HC-05 Local Chip at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
