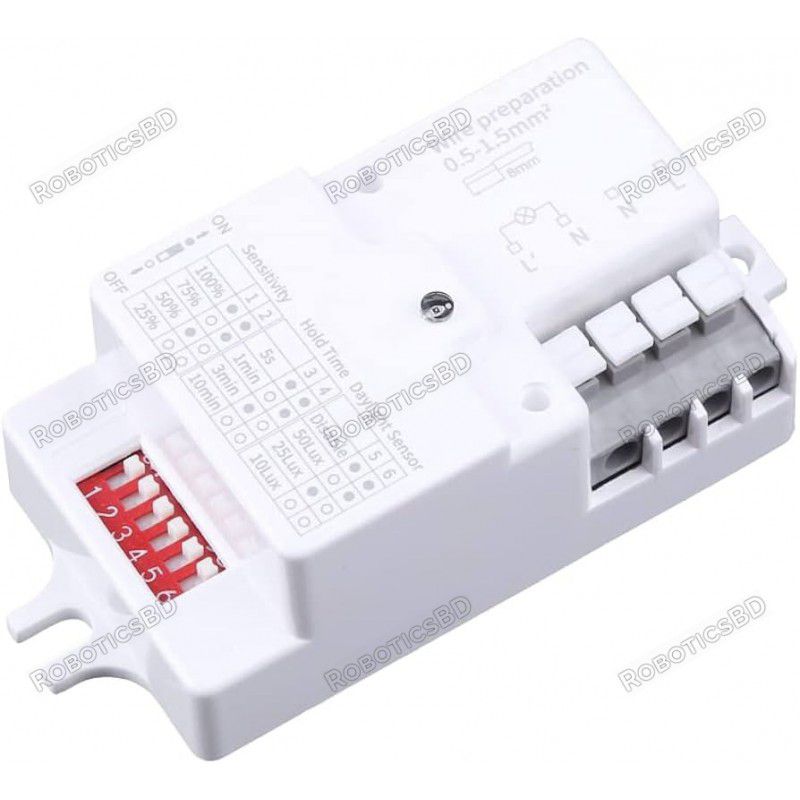

The Microwave Radar Sensor Body Motion Detector Switch offers a highly precise and energy-efficient solution for motion-based lighting control. Utilizing advanced 5.8GHz microwave detection technology, this sensor can detect motion even through non-metallic surfaces such as glass, wood, and thin walls, making it ideal for challenging indoor environments where traditional infrared sensors fall short.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The Microwave Radar Sensor Body Motion Detector Switch offers a highly precise and energy-efficient solution for motion-based lighting control. Utilizing advanced 5.8GHz microwave detection technology, this sensor can detect motion even through non-metallic surfaces such as glass, wood, and thin walls, making it ideal for challenging indoor environments where traditional infrared sensors fall short.
Designed to work seamlessly with LED lighting systems, it supports a wide range of applications including home security, office automation, and warehouse lighting. Its adjustable sensing range, time delay, and ambient light sensitivity allow for full customization to meet your specific needs. With minimal standby power consumption, the sensor helps to further reduce energy costs.
Advanced Microwave Detection: 5.8GHz technology for superior motion sensing performance
Energy Efficient: Standby power consumption of approximately 0.9W
Fully Adjustable Settings: Customize sensing distance (1m to 8m), time delay (6 seconds to 30 minutes), and ambient light threshold (as low as 2 Lux)
LED Compatible: Supports resistive loads up to 800W and capacitive loads up to 400W
Wide Coverage: 360° detection area, ideal for large spaces
Compact Design: Easy integration into various lighting systems and fixtures
Waterproof Capability: Can be installed inside IP65+ rated enclosures for moisture protection
| Feature | Specification |
|---|---|
| Working Voltage | 220V-240V AC / 50Hz |
| Microwave Frequency | 5.8GHz |
| Load Capacity | 800W (Incandescent) / 400W (Fluorescent/LED) |
| Standby Power Consumption | Approximately 0.9W |
| Sensing Distance | 1m to 8m (adjustable via DIP switch) |
| Time Delay | 6 seconds to 30 minutes (adjustable via DIP switch) |
| Photo Sensing Range | 2Lux minimum (adjustable via DIP switch) |
| Working Temperature | -20°C to +65°C |
| Microwave Emission | Less than 10mW |
| Coverage | 360° (depending on fitting and surroundings) |
| Dimensions | 8 x 4 x 3.2 cm (3.15 x 1.26 x 0.94 inches) |
| Color | White |
Connect the sensor to a 220-240V AC power supply and your LED lighting system.
Use the DIP switch settings to configure the desired sensing distance, time delay, and ambient light sensitivity.
The sensor detects motion and automatically activates the connected light or device.
Once the area is clear, the light turns off after the preset time delay, conserving energy.
Home security and entrance lighting
Office and commercial space automation
Corridor and stairway lighting control
Warehouse and industrial lighting systems
Smart energy-saving lighting projects
1 x AC 220V-240V Microwave Radar Sensor Body Motion Detector Switch
Superior detection range and precision with microwave radar technology
Customizable settings for sensing distance, time, and ambient light levels
Wide 360° detection ideal for comprehensive area coverage
Perfect for energy-saving applications with minimal standby power consumption
Reliable operation even through glass, doors, and non-metallic materials
Bring intelligent, efficient, and reliable motion sensing to your lighting systems with the AC 220V-240V 5.8GHz Microwave Radar Sensor Body Motion Detector Switch.
Order now and experience smarter lighting control with maximum convenience!
The latest price of AC 220V-240V/50Hz Microwave Radar Sensor Body Motion Detector Switch for LED Light in Bangladesh is BDT 1,200 You can buy the AC 220V-240V/50Hz Microwave Radar Sensor Body Motion Detector Switch for LED Light at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
