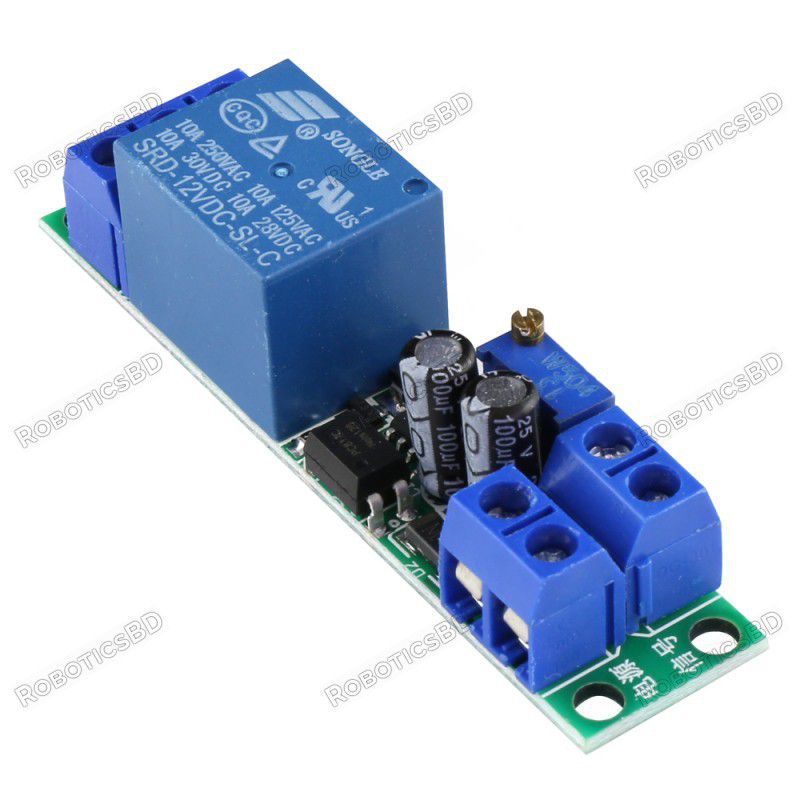

The 1 Channel 12V Timer Relay Module is a highly reliable switching module ideal for precise timing control applications. Built around the popular NE555 timer chip, it allows users to control the relay ON/OFF timing via an adjustable potentiometer, offering a time delay range of 0 to 25 seconds. Designed with an optically isolated input, this module provides enhanced safety and stable signal triggering for automation, industrial control, or DIY electronics projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:
The 1 Channel 12V Timer Relay Module is a highly reliable switching module ideal for precise timing control applications. Built around the popular NE555 timer chip, it allows users to control the relay ON/OFF timing via an adjustable potentiometer, offering a time delay range of 0 to 25 seconds. Designed with an optically isolated input, this module provides enhanced safety and stable signal triggering for automation, industrial control, or DIY electronics projects.
Key Features:
Wide Compatibility: Supports both high-level and low-level trigger signals.
Adjustable Delay Time: Fine-tune the relay delay from 0 to 25 seconds using the onboard potentiometer.
Optically Isolated Input: Ensures strong signal integrity and electrical isolation between input and control logic.
Powerful Relay Output: Supports high-power loads up to DC 30V 10A or AC 250V 10A.
NE555 Timer IC: Reliable and widely used timing chip for consistent delay performance.
Technical Specifications:
Operating Voltage: DC 12V
Delay Time: Adjustable 0 to 25 seconds
Relay Contact Rating: AC 250V / 10A, DC 30V / 10A
Input Signal: High or low pulse trigger
Optical Isolation: Yes
Relay Channels: 1
How to Use:
Power the module with 12V DC.
Provide a pulse input (high or low) to trigger the relay.
The relay turns ON immediately after the input signal.
Once the signal is removed, the timer starts.
After the delay period (set by potentiometer), the relay turns OFF.
If the input signal stays active, the relay remains ON until the signal is removed.
Applications:
Delay switch control systems
Industrial automation timing control
DIY home automation
Signal triggering with delay function
Automotive electronics
Smart appliance control
Package Includes:
1 x 12V Timer Relay Module (1 Channel, Optically Isolated Input)
Why Choose This Timer Relay Module?
With its opto-isolated input, versatile signal compatibility, and adjustable delay functionality, this module is perfect for building custom automation and timing systems. Whether you’re working on a smart home setup or an industrial control application, this module offers reliable performance and easy integration.
Add precision timing control to your project today—order now and start automating with confidence!
The latest price of 1 Channel 12V Timer Relay Module with Optically Isolated Input in Bangladesh is BDT 250 You can buy the 1 Channel 12V Timer Relay Module with Optically Isolated Input at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
