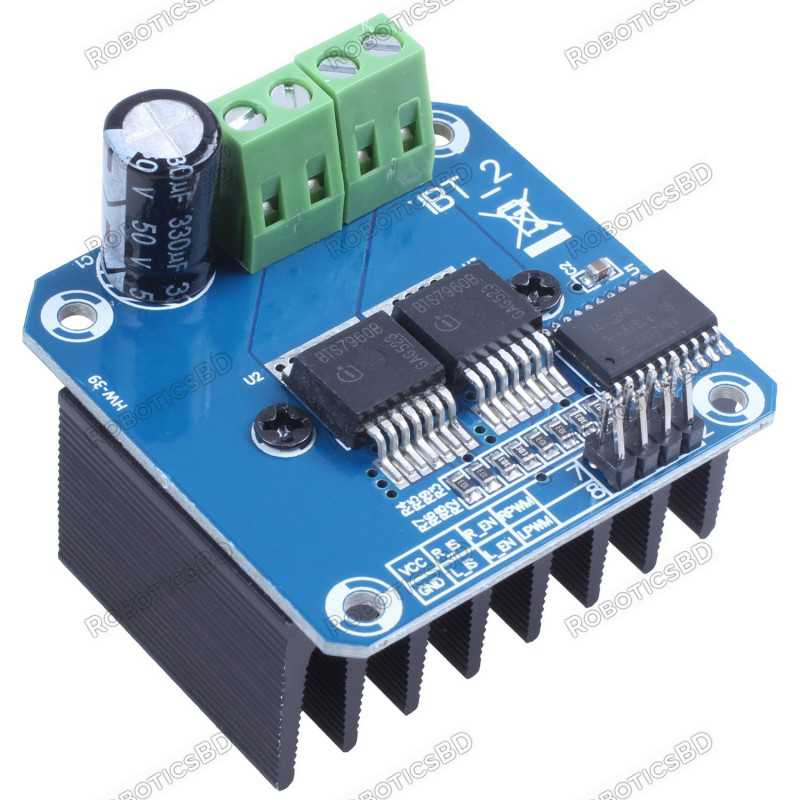

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.
Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation and protection against overtemperature, overvoltage, under voltage; overcurrent, and short circuit.
The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module provides; a cost-optimized solution for protected high current PWM motor drives with very low board space consumption. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input voltage(V) | 6 – 27 |
| Maximum current(A) | 43 |
| Input level(V) | 3.3 – 5 |
| Duty cycle | 0 – 100% |
| Path resistance | 16 mΩ at 25°C. |
| Low quiescent current | 7 µA at 25°C |
| Operating Frequency(KHz) | 25 |
| Dimensions (mm) | 50 x 50 x 43 |
| Weight(gm) | 67 |
| Shipment Weight | 0.07 kg |
| Shipment Dimensions | 6 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Motor Driver 43A BTS7960
The latest price of Motor Driver 43A BTS7960 in Bangladesh is BDT 499 You can buy the Motor Driver 43A BTS7960 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
