3-axis magnetic electronic compass.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

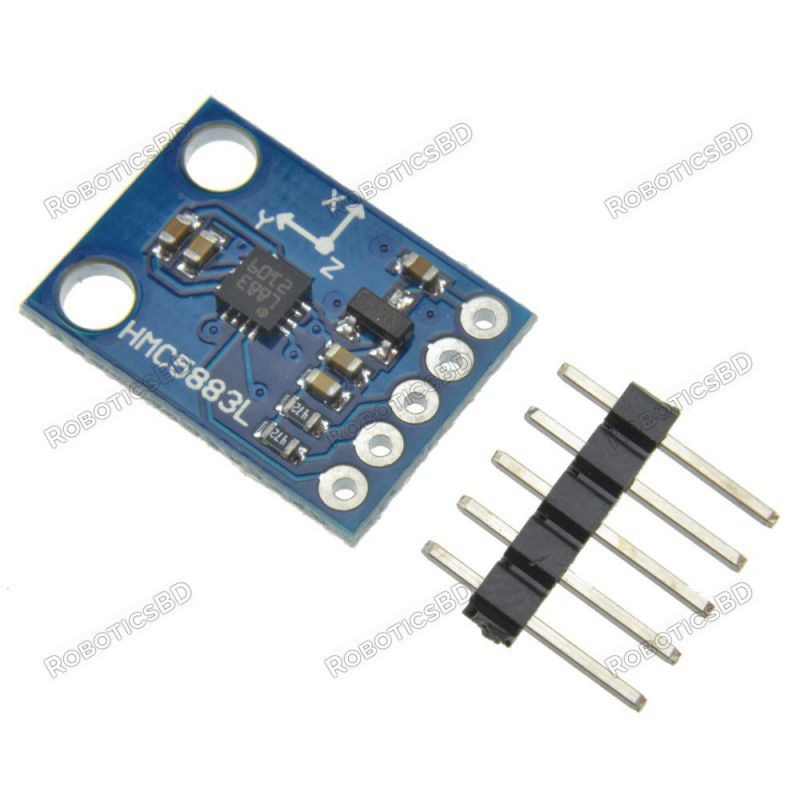

HW-127 HMC5883L or HMC5883L 3-axis Electronic Compass Module Magnetic Field Sensor(with Original HMC5883L or HMC5883L Driver Chip) is designed for low field magnetic sensing with a digital interface and it is perfect to give precise heading information. RoboticsBD
Library:
https://github.com/keepworking/Mecha_QMC5883L
https://www.arduino.cc/reference/en/libraries/qmc5883lcompass/
This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions. RoboticsBD
A development board that provides a simple interface for the HMC5883L/ HMC5883L (three-axis magnetic field module).
This module is based on a popular and well-loved magnetometer, the HMC5883L. This compact sensor uses I2C to communicate and its very easy to use. Since it's a 3.3V max chip, we added circuitry to make it 5V-safe logic and power, for easy use with either 3 or 5V microcontrollers. Simply connect VCC to +3-5V and ground to ground. Then read data from the I2C clock and data pins. There's also a Data Ready pin you can use to speed up reads (check the datasheet for details)
If using with an Arduino, its extra-easy to get started as electropeak already wrote a nice little Arduino interfacing tutorial to get you started. Simply download our library and connect the SCL pin to your Arduino's I2C clock pin, and SDA pin to your Arduino's I2C data pin and upload our test example sketch to read out magnetic field data and heading (i.e. which way is north)
This is the same magnetometer sensor that is inside the LSM303. So if you want an accelerometer as well as a magnetometer, check out the LSM303 - it has basically this sensor + a nice digital 3-axis accelerometer! Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Driver IC | HMC5883L |
| Type | HW-127 |
| Operating Voltage (VDC) | 3 ~ 5 |
| Communication | I2C Protocol |
| Measuring Range | ± 1.3-8 Gauss |
| Length (mm) | 14.8 |
| Width (mm) | 13.5 |
| Height (mm) | 3.5 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x HW-127 HMC5883L/ 3-axis Electronic Compass Module.
2 x 5*1 Male Burg Connectors (without soldered).
The latest price of Compass Sensor HMC5883L HW-127 in Bangladesh is BDT 430 You can buy the Compass Sensor HMC5883L HW-127 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
