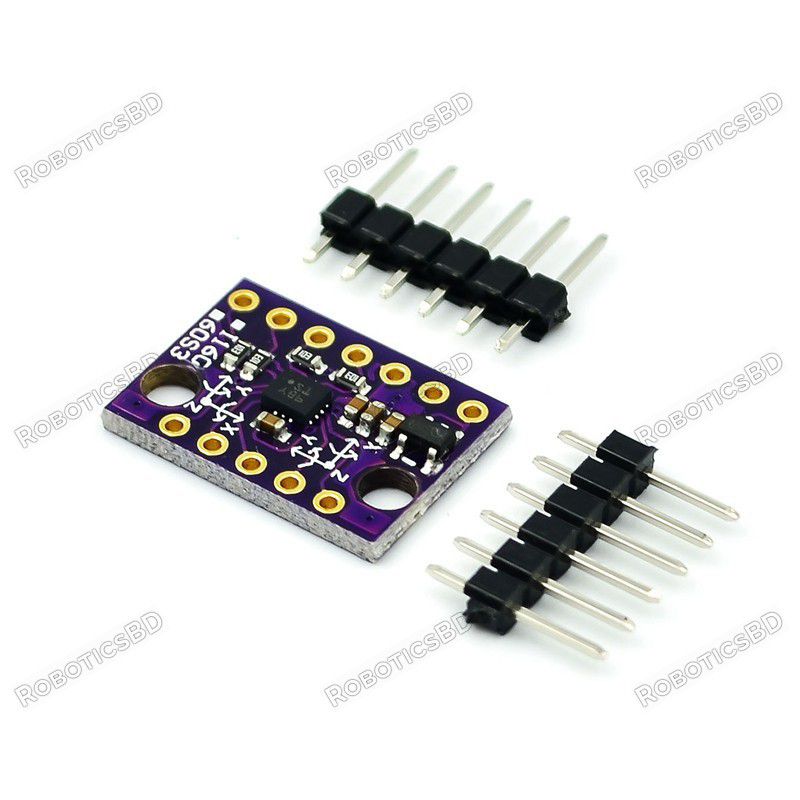

The GY-BMI160 Module integrates the powerful BOSCH BMI160 inertial measurement unit (IMU), delivering high-precision 6-axis motion sensing in an ultra-compact package. Designed for mobile phones, tablets, and wearable devices, the BMI160 combines a 3-axis accelerometer and 3-axis gyroscope to offer exceptional motion tracking performance with ultra-low power consumption, enabling continuous motion detection ("always-on" applications) without draining battery life.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The GY-BMI160 Module integrates the powerful BOSCH BMI160 inertial measurement unit (IMU), delivering high-precision 6-axis motion sensing in an ultra-compact package. Designed for mobile phones, tablets, and wearable devices, the BMI160 combines a 3-axis accelerometer and 3-axis gyroscope to offer exceptional motion tracking performance with ultra-low power consumption, enabling continuous motion detection ("always-on" applications) without draining battery life.
The module supports both I2C and SPI communication interfaces, providing easy and flexible integration with various microcontrollers and embedded systems. With a compact footprint, high-precision 16-bit data output, and wide measurement ranges, the GY-BMI160 is an excellent choice for motion sensing, activity tracking, and stabilization applications.
Combines a 3-axis accelerometer and 3-axis gyroscope in one compact module
Ultra-low power consumption ideal for wearable and portable devices
High-precision 16-bit ADC for accurate data output
Supports continuous motion tracking ("always-on" applications)
I2C and SPI communication protocols for flexible connectivity
Wide measurement ranges for both acceleration and angular velocity
High-quality gold-plated PCB and machine-soldered for durability
Standard 2.54mm pin spacing for easy breadboard use
Module Name: GY-BMI160
Sensor Chip: BMI160
Power Supply Voltage: 3V to 5V (with onboard low dropout voltage regulator)
Communication Interface: I2C/SPI selectable
Accelerometer Range: ±2g, ±4g, ±8g, ±16g
Gyroscope Range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
ADC Resolution: 16-bit
Pin Pitch: 2.54mm
Module Size: 13mm x 18mm
Connect the module to your microcontroller using I2C or SPI interface.
Configure the accelerometer and gyroscope ranges as needed via software.
Continuously read motion and orientation data for real-time applications.
Implement sensor fusion algorithms if a full 9-axis system (with an external magnetometer) is desired.
Smartphones and tablets
Wearable fitness and health devices
Gesture recognition and gaming controls
Robotics and drone stabilization
VR/AR motion tracking
Smartwatches and fitness trackers
Industrial equipment monitoring
1 x GY-BMI160 Module – 6DOF 6 Axis Angular Velocity Sensor
Ultra-low power and high-precision performance for mobile and wearable applications
Highly accurate 6-axis sensing in a compact footprint
Easy integration with microcontrollers via I2C or SPI
Reliable and durable design with gold-plated PCB and machine soldering
Ideal for continuous monitoring applications where battery life is critical
Empower your projects with professional-grade motion sensing using the GY-BMI160 6DOF 6 Axis Angular Velocity Module.
Order now to unlock new possibilities in motion tracking, stabilization, and wearable technology design!
The latest price of GY-BMI160 Module – 6DOF 6 Axis Angular Velocity Sensor in Bangladesh is BDT 450 You can buy the GY-BMI160 Module – 6DOF 6 Axis Angular Velocity Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
