Reference: RBD-3525

Brand: DFRobot

Fermion: 10 DOF IMU Sensor - ADXL345+ITG3205+VCM5883L+BMP280 Breakout

1 review

At the beginning, the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerometers,gyroscopes, and magnetometers. Now IMU sensor are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in...

Reference: RBD-0104

6DOF Accelerometer Gyroscope GY-521 MPU-6050

39 reviews

Chip built-in 16bit AD converter, 16-bit data output Driver Chip: MPU6050 Operating Voltage: 3-5V DC Communication: I2C/IIC Protocol Gyro Range: ± 250, 500, 1000, 2000 °/s Accelerometer Range: ± 2 ± 4 ± 8 ± 16 gChip Origin: InvenSense

Reference: RBD-3598

GY-BNO055 9DOF Absolute Orientation IMU Sensor Module (I2C) – Accelerometer, Gyroscope, Magnetometer Fusion

The GY-BNO055 9DOF Absolute Orientation Sensor Module is a high-precision 9-axis IMU (Inertial Measurement Unit) breakout board that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. Unlike traditional IMUs, the BNO055 simplifies complex motion tracking by integrating a high-speed ARM Cortex-M0 processor directly on the chip....

Reference: RBD-0382

GY-87 10DOF MPU6050 HMC5883L BMP180 Sensor Module

5 reviews

3-axis Gyro+Acceleration+Magnetic Fiel Air Pressure Module Power supply: 3-5V Build in ultra low noise linear LDO voltage regulator Built-in onboard filters, which reduce noise from motor and other high current electronics You can easily select two I2C address for MPU6050 by soldered jumper. RoboticsBD

Reference: RBD-3277

GY-271 QMC5883L 3-Axis Compass Magnetometer Sensor Module

The GY-271 QMC5883L 3-Axis Magnetometer Sensor Module is a high-precision digital compass that measures the strength and direction of magnetic fields in three axes (X, Y, Z). Designed for robotic navigation, orientation detection, and motion tracking, this compact and efficient module is perfect for projects requiring accurate geomagnetic field...

Reference: RBD-3403

GY-271 HMC5883L 3-Axis Compass Magnetometer Sensor Module

The GY-271 HMC5883L 3-Axis Magnetometer Sensor Module is a high-precision digital compass that measures the strength and direction of magnetic fields in three axes (X, Y, Z). Designed for robotic navigation, orientation detection, and motion tracking, this compact and efficient module is perfect for projects requiring accurate geomagnetic field...

Reference: RBD-0812

High Accuracy I2C MAX30105 Particle Optical Sensor Photodetectors Oximeter Module

1 review

Based on MAX30105 – heart rate, oximeter, smoke sensor Green, red, and infra-red LEDs Interface: I2C (address 0x57) Compatible with 3.3V and 5V logic levels.

Reference: RBD-3404

Compass Sensor HMC5883L HW-127

1 review

3-axis magnetic electronic compass. Precise heading information. Operating Voltage: 3 -5 V DC. Driver Chip: HMC5883L / QMC5883L Communication: I2C protocol. Measuring range: ± 1.3-8 Gauss.

Reference: RBD-0288

GY-801 10DOF IMU BMP180 ADXL345 HMC5883L L3G4200D Sensor Module

1 review

Three selectable full scales (250/500/2000dps) Factor in all g-ranges, up to 13-bit resolution at ±16 g 12-Bit ADC Coupled with Low Noise ARM Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields Pressure range:300 to1100hPa (+9000m to -500m above sea level) I2C interfaces Power supply: 3-5v

Reference: RBD-3654

Brand: DFRobot

Gravity BMX160+BMP388 10 DOF Sensor

The product is a compact 10 DOF sensor module for drones, combining 9-axis orientation and barometric pressure sensors, ideal for height and orientation measurement.

Reference: RBD-1919

GY-9255 MPU9255 Sensor Module

2 reviews

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modulesThe magnetometer is currently inaccessible via I2C and therefore unavailable.True 9dof: Gravity 10 DOF IMU AHRS BNO055 + BMP280 True 9dof: GY-BNO055 9DOF Absolute Orientation IMU Sensor Module (I2C) –...

Reference: RBD-2448

Keyes 3 Axis Accelerometer Module KY-143 MMA8452Q 5V

This module serves to breakout the MMA8452Q chipset, a chip capable of providing 3 axis acceleration readings. The chipset features a 3 axis accelerometer (±2-8g) and an internal dropout regulator to allow the use of 5V and 3.3V supplies. When combined with free libraries it is possible to utilize the chipset's processing power to perform data conversions...

Reference: RBD-1811

AS5600 Magnetic Induction Encoder Angle Measurement Sensor

6 reviews

AS5600 Magnetic Induction Angle Measurement Sensor

Reference: RBD-0334

9 Degrees of Freedom Breakout- MPU9150

1 review

The 9DOF MPU-9150 is the world’s first 9-axis MotionTracking MEMS device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors. And guess what? You get to play with it.

Reference: RBD-0664

ADXL345 Triple Axis Accelerometer Breakout

9 reviews

Supply Voltage: 3.3 V/ 5V. Interface Type: I²C, SPI. Sensing Range: ±2g, ±4g, ±8g, ±16g. Sensitivity X: 28.6 LSB/g. Sensitivity Y: 31.2 LSB/g. Sensitivity Z: 34.5 LSB/g. Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. RoboticsBD

Reference: RBD-2792

Tilt Sensor AT407

This AT407 basic tilt switch can easily be used to detect orientation. Inside the can is a ball that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection. There are numerous uses for these basic sensors, but keep in mind you might need to use some debouncing code, as the sensor...

Reference: RBD-0569

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module

2 reviews

Acceleration, Gyroscope Power Supply: DC3.3V-5V Chip: MPU9250 Size: 22 mm x 17 mm. Gyro range : ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g 9 DOF modulesChinese Variant MP92 QFN24 PackageThe magnetometer is currently inaccessible via I2C and therefore unavailable.True 9dof: Gravity 10 DOF IMU AHRS BNO055 + BMP280 True 9dof: GY-BNO055...

Reference: RBD-3651

Brand: DFRobot

Fermion: BMM350 Triple-Axis Magnetometer Sensor for AR / VR Breakout

1 review

The BMM350 sensor measures magnetic fields on 3 axes using TMR tech, offers high sample rates, wide range, high resolution, and stability against field shocks.

Reference: RBD-0743

S550 Hexcopter Frame 550mm (Black)

Wheelbase: 550mm Weight: 550g/720g(without/with gimbal) Adopts S800 upward tilt arm design – Plastic injection moduling Ensures hardness and lighter weight – Brushless gimbal compatible for FPV It comes with PCB center board of soldered The arm equips support ridges for better and faster forward flight. Features pre-threaded brass sleeves.

Reference: RBD-3400

6DOF Accelerometer Gyroscope GY-521 MPU-6050 High Quality Gold Plated

Chip built-in 16bit AD converter, 16-bit data output Driver Chip: MPU6050 Operating Voltage: 3-5V DC Communication: I2C/IIC Protocol Gyro Range: ± 250, 500, 1000, 2000 °/s Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g

Reference: RBD-2733

GY-50 L3G4200D 3-Axis Gyroscope Sensor

GY-50 L3G4200D 3-Axis Gyroscope Sensor Module   Three selectable full scales (250/500/2000 dps)   I2C and SPI digital output interface avail.   Two I2C address you can select by jumpers   16 bit-rate value data output   8-bit temperature data output   Wide supply voltage: 2.4 V to 3.6 V   Low voltage-compatible IO (1.8 V)   Embedded power-down and sleep...

Reference: RBD-2762

GY-362 ADXL362 Triaxial Accelerometer Sensor Module

The GY-362 ADXL362 Sensor Module is a high-precision accelerometer module designed for a wide range of motion sensing applications. Powered by Analog Devices' ADXL362, this module offers ultra-low power consumption, exceptional accuracy, and versatile functionality.

Reference: RBD-2783

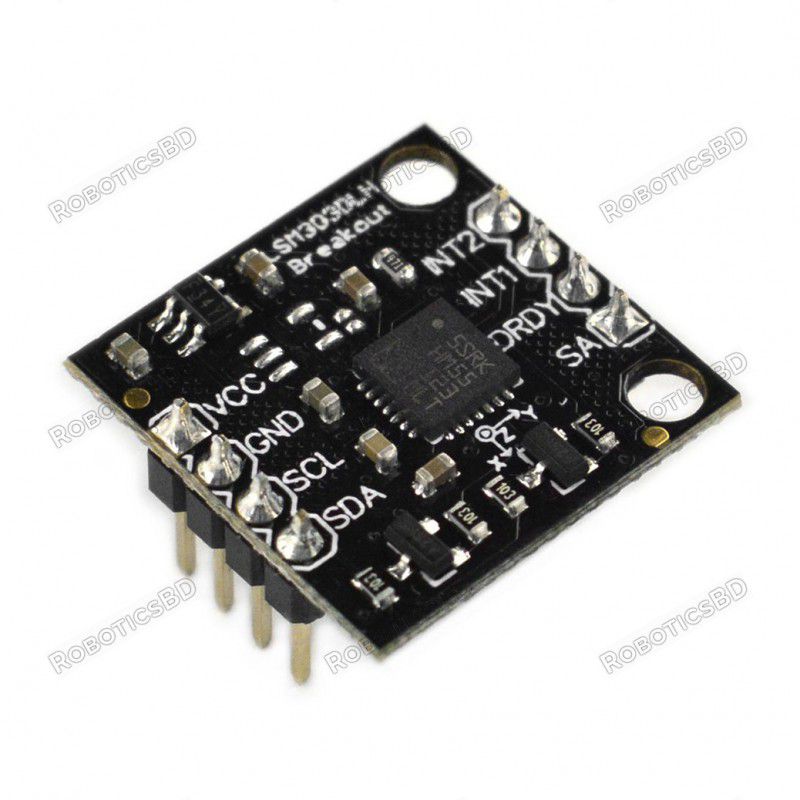

LSM303DLH 3-Axis Electronic Compass Accelerometer Module

The GY-51 LSM303DLH chip has an accelerometer, magnetometer, A / D converters and signal conditioning circuit integrated. Still, the communication to the processor is done through the I2C bus. Thus only one chip is required to achieve a six-axis data detection and output. The LSM303DLH requires very little peripheral devices.

Reference: RBD-0742

Motor Driver 43A BTS7960

15 reviews

Input voltage(V): 6 – 27. Maximum current(A): 43. Input level(V): 3.3 – 5. Duty cycle: 0 – 100%. Path resistance: 16 mΩ at 25°C. Low quiescent current: 7 µA at 25°C.

Reference: RBD-1913

ADXL335 Module 3-axis Analog Output Accelerometer GY-61

6 reviews

Onboard LDO Voltage regulator Can be interfaced with 3V3 or 5V Microcontroller. Tap/Double Tap Detection Free-Fall Detection Analog output Build in ultra low noise linear LDO voltage regulator Built-in onboard filters, which reduce noise from the motor and other high current electronics Power LED

Reference: RBD-0687

BMP280 Pressure Sensor Module

17 reviews

Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V. Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C). Peak current: 1.12mA. RoboticsBD Operating Pressure: 300 hPa to 1100 hPa. Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m.

Reference: RBD-3450

GY-BMI160 Module – 6DOF 6 Axis Angular Velocity Sensor

The GY-BMI160 Module integrates the powerful BOSCH BMI160 inertial measurement unit (IMU), delivering high-precision 6-axis motion sensing in an ultra-compact package. Designed for mobile phones, tablets, and wearable devices, the BMI160 combines a 3-axis accelerometer and 3-axis gyroscope to offer exceptional motion tracking performance with ultra-low...

Reference: RBD-2743

LIS3DSH High Resolution Three Axis Triaxial Accelerometer Module

Wide supply voltage 1.71 V to 3.6 V Independent IO power (1.8V) and power supply voltage compatible Ultra-low power consumption of ± 2g / ± 4G / ± 6g / ± 8G / ± 16g IIC  / SPI digital output interface 16-bit data output Programmable Embedded State Machine Embedded temperature sensor Embedded self-test Embedded FIFO 10,000 g high impact resistance

Reference: RBD-1202

Compass Sensor QMC5883L / HMC5883L GY271

11 reviews

3-axis magnetic electronic compass. Precise heading information. Operating Voltage: 3 -5 V DC. Driver Chip: HMC5883L / QMC5883L Communication: I2C protocol. Measuring range: ± 1.3-8 Gauss.Library: https://github.com/keepworking/Mecha_QMC5883Lhttps://www.arduino.cc/reference/en/libraries/qmc5883lcompass/

Reference: RBD-3437

6DOF Accelerometer Gyroscope GY-521 MPU-6050

Chip built-in 16bit AD converter, 16-bit data output Driver Chip: MPU6050 Operating Voltage: 3-5V DC Communication: I2C/IIC Protocol Gyro Range: ± 250, 500, 1000, 2000 °/s Accelerometer Range: ± 2 ± 4 ± 8 ± 16 gChip Origin: Domestic Chinese Chip.
