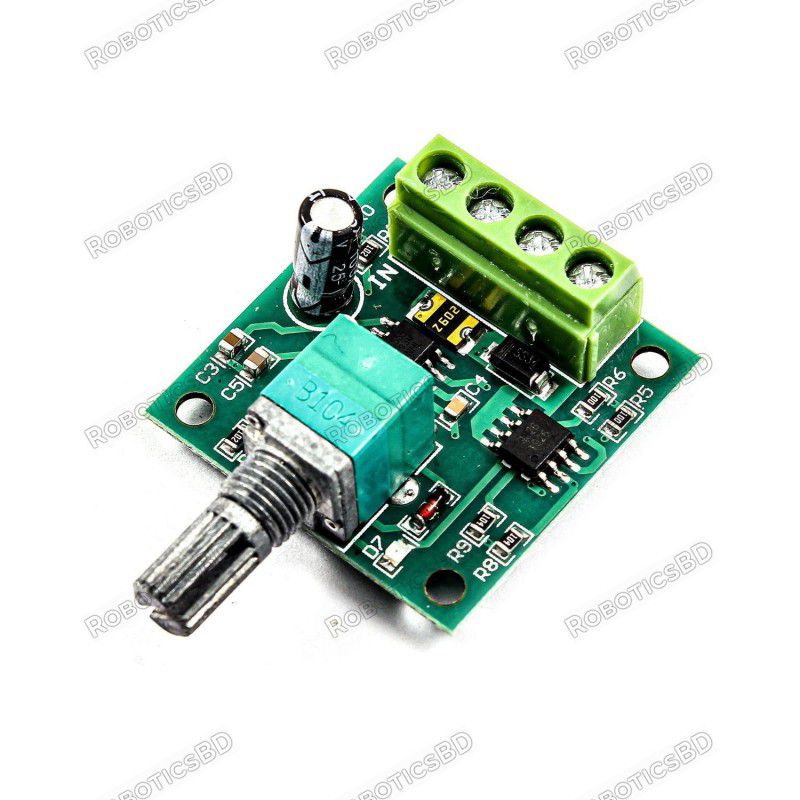

The 1803BK 30W DC Motor PWM Speed Controller is a compact and efficient solution for controlling the speed of DC motors with precision. Using Pulse Width Modulation (PWM) technology, this controller allows you to adjust motor speed from 0% to 100% smoothly while maintaining high torque performance.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 1803BK 30W DC Motor PWM Speed Controller is a compact and efficient solution for controlling the speed of DC motors with precision. Using Pulse Width Modulation (PWM) technology, this controller allows you to adjust motor speed from 0% to 100% smoothly while maintaining high torque performance.
Designed to operate within a voltage range of 1.8V to 12V DC and supporting up to 2A current, this module is perfect for small motors used in DIY electronics, robotics, model making, and other motor control applications. The integrated ON/OFF switch function adds extra convenience for quick control during operations.
Important: The module must be powered by a DC power source only. Direct connection to AC mains (e.g., 220V AC) will damage the controller.
Voltage Input Range: 1.8V to 12V DC
Current Range: Up to 2A (continuous operation recommended above 0.5A)
Speed Control: Smooth adjustment from 0% to 100%
PWM Technology: Efficient speed control without sacrificing motor torque
Integrated Switch: ON/OFF switch for easy operation
Compact Design: Small 32mm x 32mm form factor for easy integration
| Feature | Specification |
|---|---|
| Input Voltage | 1.8V – 12V DC |
| Output Current | Up to 2A |
| Speed Adjustment Range | 0% to 100% (PWM control) |
| Switch Function | Integrated ON/OFF switch |
| Module Size | 32mm x 32mm |
Connect only to a DC power source; do not connect directly to household AC 220V.
Recommended maximum input voltage is 12V DC. Using higher voltages, such as unregulated 12V lead-acid batteries, may risk damaging the controller.
Suitable for low to medium power motors where operating current does not exceed 2A.
DIY motor speed control projects
Robotics and automation
Model vehicles and trains
Fans, pumps, and small DC devices
Educational electronics experiments
1 x 1803BK 30W DC Motor PWM Speed Controller Module
Precise PWM speed regulation with simple control
Integrated switch function for easy motor ON/OFF
Compact size perfect for space-limited applications
Ideal for hobbyists, students, and engineers working with small DC motors
Control your DC motors easily and efficiently with the 1803BK 30W DC Motor PWM Speed Controller.
Order now and bring precision speed control to your projects!
The latest price of 1803BK 30W DC Motor PWM Speed Controller in Bangladesh is BDT 190 You can buy the 1803BK 30W DC Motor PWM Speed Controller at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
